G125-FV15005L0R

Overview

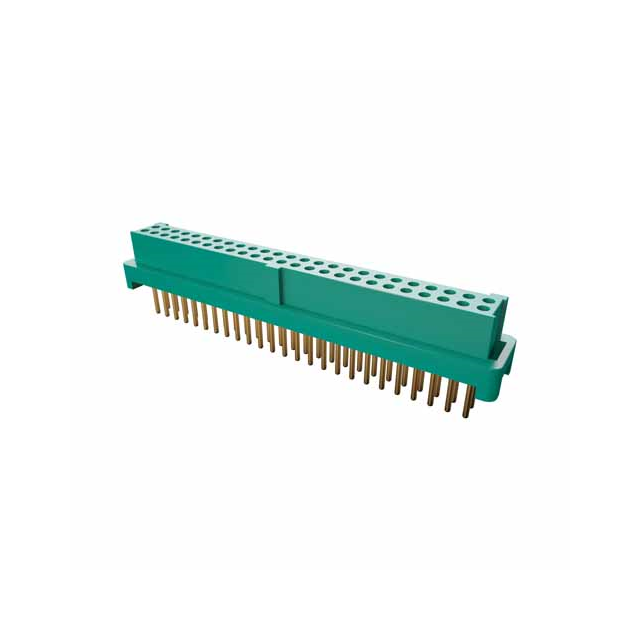

The Harwin G125-FV15005L0R is a power-to-board connector from the GECKO series, designed for vertical through-board mounting. It features a 1.25 mm pitch and a 2x25 position configuration, totaling 50 contacts. The component utilizes solder pin termination for secure PCB attachment. Rated for 2 A current and 250 V/450 V voltage, it employs copper alloy contacts with gold plating. The housing is constructed from polyamide (PA), offering an insulation resistance of 10 GOhms. It operates within a temperature range of -65°C to +150°C and is supplied in reel packaging.

Feature Summary

• Vertical orientation design facilitates direct board-to-board or cable connections without horizontal space constraints.
• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance over repeated mating cycles.
• Polyamide housing provides high thermal stability and mechanical strength suitable for demanding industrial environments.

Applications

• Industrial control systems requiring compact power distribution
• Automotive electronics modules needing high-density interconnects
• Telecommunications infrastructure equipment

Procurement Notes

Verify RoHS and REACH compliance status directly with the manufacturer before integration, as regulatory details are listed as 'Details' rather than explicit confirmations in available data. Confirm that the reel packaging quantity aligns with production line requirements, noting the factory pack size is specified as 250 units. Ensure storage conditions maintain the integrity of the gold-plated contacts and polyamide housing prior to assembly.

Selection Notes

Select this component when a vertical, high-density power connection is required on a printed circuit board. The 1.25 mm pitch allows for significant contact density in a small footprint. Consider the 2 A current rating per contact to ensure adequate power delivery for the specific application load. The straight installation angle is fixed; verify board layout compatibility with this vertical profile.

Part Context

This part belongs to the Harwin GECKO G125 series, which specializes in micro-miniature connectors. The series is characterized by its 1.25 mm pitch and robust construction for harsh environments. The G125-FV variant specifically denotes female vertical headers, distinguishing it from male or horizontal counterparts within the same product family.

Replacement Considerations

G125-FV15005AAL9400 is a confirmed substitute part number for the discontinued G125-FW10150L94, but no direct replacement is explicitly documented for the G125-FV15005L0R in the provided source material. Verify cross-compatibility with other G125 series components if modification is necessary.
