G125-FV20605L0R

Overview

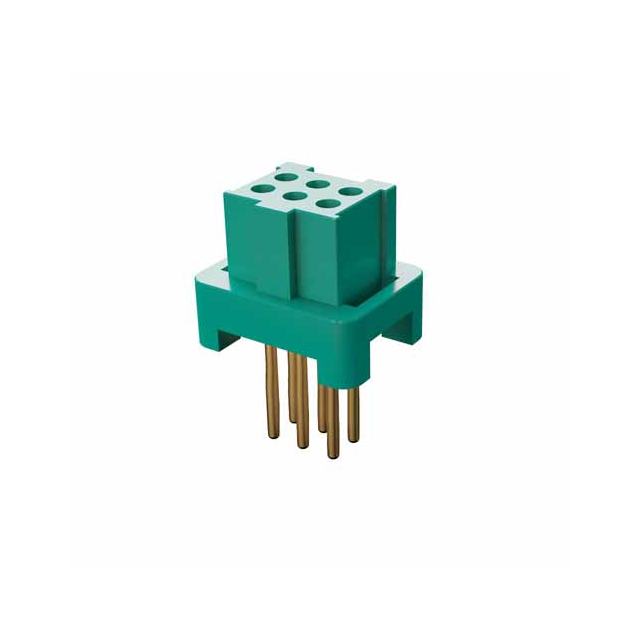

The G125-FV20605L0R is a power-to-board connector from the Harwin Gecko-Latch series. It features a female socket configuration with a 1.25 mm pitch and a 4.5 mm tail length. The component is designed for vertical through-hole mounting in a two-row arrangement, providing six positions (2x3). It utilizes gold-plated contacts housed in a thermoplastic body, rated for 2 A current and 250 V voltage.

Feature Summary

• Vertical through-hole termination for secure board integration
• Gold-plated phosphor bronze contacts ensure reliable conductivity
• Gecko-Latch series design supports high-density power distribution

Applications

• Industrial control systems requiring robust power connections
• Telecommunications equipment power supply interfaces
• Consumer electronics internal power routing

Procurement Notes

Verify the specific ordering suffix to confirm the exact tail length and packaging format, as variations exist within the Gecko-Latch family. Ensure compatibility with mating male headers regarding row spacing and contact alignment. Confirm RoHS compliance status through official manufacturer documentation prior to final procurement decisions.

Selection Notes

Select this component when a low-profile vertical connection with a 4.5 mm tail is required. The 1.25 mm pitch allows for compact circuit board layouts. Ensure the application environment stays within the specified temperature range of -65°C to +150°C for optimal performance and longevity.

Part Context

This part belongs to the Gecko-Latch series by Harwin, which focuses on high-reliability power connectors. The series is characterized by its small form factor and robust mechanical locking features. It serves as a standard solution for modern electronic designs needing efficient power delivery in constrained spaces.

Replacement Considerations

Direct substitutes include other Harwin Gecko-Latch female sockets with identical 1.25 mm pitch and 6-position configurations. Verify that alternative parts match the 4.5 mm tail length and vertical orientation to maintain mechanical fit.
