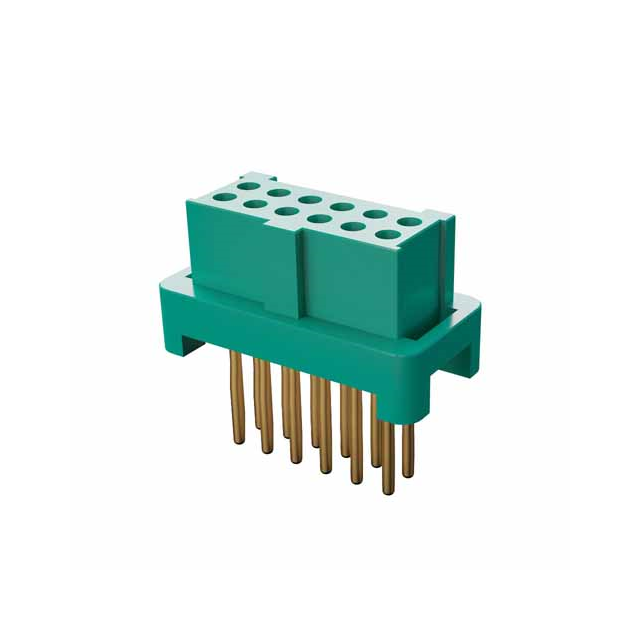

G125-FV21205L0R

Description：CONN RCPT 12POS 0.049 GOLD PCB
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:f2255d4b2e2c Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 12POS 0.049 GOLD PCB
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：12
Number of Positions Loaded：All
Pitch - Mating：0.049" (1.25mm)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Latch Holder
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Insulation Color：Green
Insulation Height：0.207" (5.25mm)
Contact Length - Post：0.177" (4.50mm)
Operating Temperature：-65°C ~ 150°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：Pick and Place, Polarizing Key
Current Rating (Amps)：2A
Voltage Rating：-

Download product information

G125-FV21205L0R

Overview

The G125-FV21205L0R is a Gecko-SL series power-to-board connector manufactured by Harwin Inc. It features a vertical surface-mount design with a 1.25 mm pitch and 12 positions (2x6). Rated for 2 A current and 250 V voltage, it utilizes gold-plated phosphor bronze contacts within a green polyamide housing. The component operates between -65°C and +150°C and supports pick-and-place assembly via tape and reel packaging.

Feature Summary

Vertical surface-mount configuration optimized for automated pick-and-place manufacturing processes.
Gecko-SL locking mechanism ensures secure mating and reliable connection stability.
Gold-plated phosphor bronze contacts provide durable electrical conductivity and corrosion resistance.
Green polyamide insulation housing meets UL94 V-0 flammability standards.

Applications

Automotive electronic systems
General industrial equipment
Power distribution boards

Procurement Notes

Verify the specific suffix L0R against official datasheets to confirm tape and reel packaging requirements. Ensure compatibility with standard SMT reflow profiles and verify that the 1.25 mm pitch matches the target PCB footprint. Confirm RoHS compliance status through the manufacturer's latest documentation before finalizing procurement orders.

Selection Notes

Select this component when a vertical, low-profile power connection is required for high-density board layouts. The 1.25 mm pitch allows for compact designs while maintaining robust 2 A current carrying capacity. Consider the Gecko-SL locking feature if vibration resistance is critical for the application environment.

Part Context

This part belongs to the Harwin Gecko-SL family of connectors, designed for demanding applications requiring high reliability. The series offers various configurations including headers, receptacles, and cable assemblies, all sharing a common 1.25 mm interface for system interoperability.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Direct replacement requires matching the 1.25 mm pitch, 12-position count, vertical orientation, and Gecko-SL locking mechanism specifications.
