G125-FV22005L0R

Overview

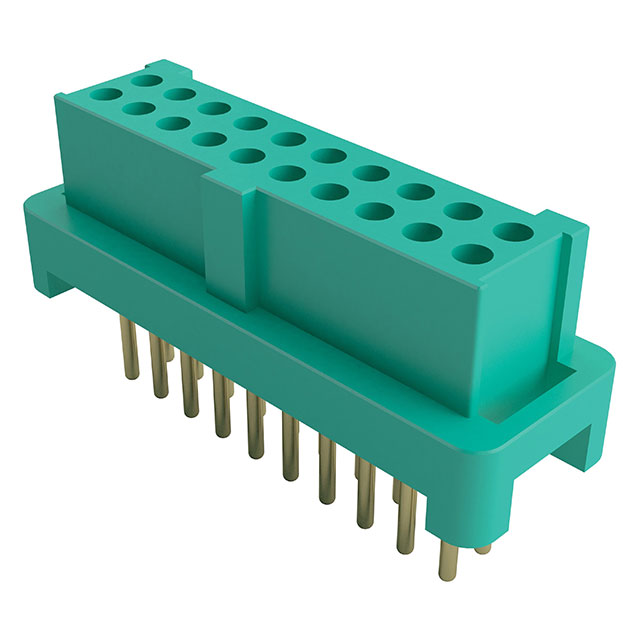

The G125-FV22005L0R is a Gecko-Latch series power-to-board connector manufactured by Harwin. It features a vertical through-hole socket configuration with a 1.25 mm pitch and two rows of contacts. The component utilizes gold-plated copper alloy terminals housed in thermoplastic insulation, rated for operation between -65°C and +150°C. Designed for high-reliability applications, it supports solder pin termination and includes pick-and-place capabilities.

Feature Summary

• Vertical through-hole mounting style for board-to-board or cable connections
• Gold-plated copper alloy contacts ensuring reliable electrical performance
• Thermoplastic housing material providing structural integrity and insulation

Applications

• Automotive electronics systems
• General industrial equipment
• High-reliability power distribution networks

Procurement Notes

Verify the specific suffix 'R' indicates tape and reel packaging when sourcing. Confirm RoHS compliance status via official datasheets prior to integration. Ensure procurement channels are authorized to guarantee component authenticity and traceability throughout the supply chain.

Selection Notes

Select this model for applications requiring vertical power interconnects with automated assembly compatibility. Evaluate thermal management requirements against the specified operating temperature range. Consider mechanical locking features inherent to the Gecko-Latch series for vibration resistance.

Part Context

This component belongs to the Harwin Gecko-Latch family, designed for robust power and signal transmission. The series emphasizes high mating cycles and secure latching mechanisms. The G125-FV variant specifically addresses vertical mounting needs within compact electronic enclosures.

Replacement Considerations

Cross-reference with G125-FV22005L0P for bulk packaging alternatives. Verify functional equivalence with other Gecko-Latch vertical sockets before substitution.
