G125-FV22605L0P

Overview

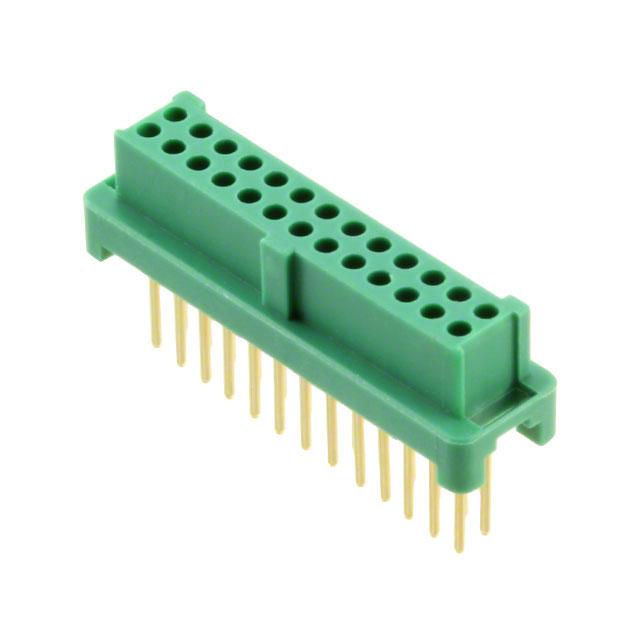

The Harwin G125-FV22605L0P is a Gecko-Latch series power-to-board connector featuring a 1.25 mm pitch and 26 positions across two rows. It utilizes female socket contacts with gold plating on phosphor bronze, rated for 2 A current and 240 V voltage. Designed for through-hole straight mounting, the component operates within a temperature range of -65 °C to +150 °C. The housing is constructed from thermoplastic material, providing an insulation resistance of 1 GOhms.

Feature Summary

• Features a secure latching mechanism for reliable board-to-board connections
• Utilizes gold-plated phosphor bronze contacts for enhanced conductivity
• Supports high-temperature operation up to 150 °C

Applications

• Compact PCB-to-board power distribution
• Industrial control systems requiring secure interconnects
• Automotive electronics modules

Procurement Notes

Verify the specific datasheet version to confirm contact material specifications, as sources indicate variations between copper alloy and beryllium copper for this part number. Ensure compatibility with mating male headers in the same Gecko-Latch series. Confirm RoHS compliance status directly with the manufacturer before finalizing procurement orders.

Selection Notes

Select this component when a vertical, through-hole female receptacle is required for compact power applications. The 1.25 mm pitch allows for dense circuit layouts. Ensure the mating design accommodates the specific latch mechanism and that the operating environment stays within the specified thermal limits.

Part Context

This connector belongs to the Harwin Gecko-Latch family, designed for robust power transmission in space-constrained environments. The series emphasizes secure mechanical locking to prevent accidental disconnection during vibration or thermal cycling, making it suitable for demanding industrial and automotive sectors.

Replacement Considerations

No public confirmed substitute part numbers are available.
