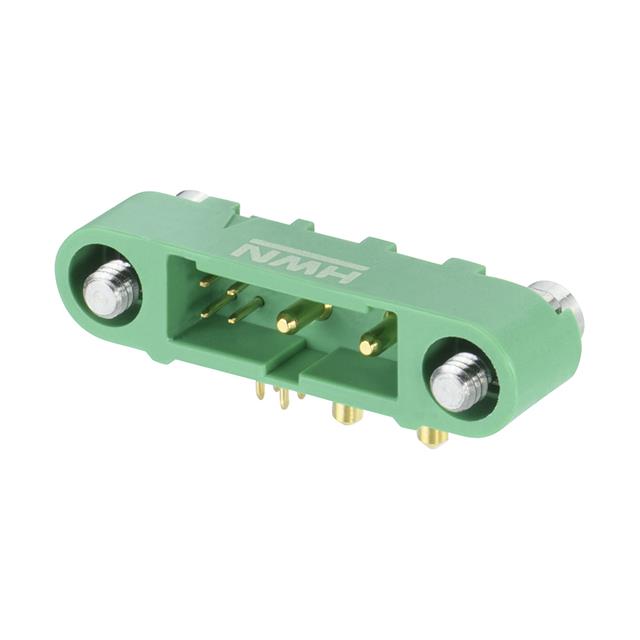

G125-MH104M3-02AD000P

$45.39

Description：HDR MALE R/A 2PWR + 4SIGNAL
Series：Gecko MT Reverse Fix
Mfr：Harwin Inc.
Package：Strip

SKU:878c1bb86087 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：HDR MALE R/A 2PWR + 4SIGNAL
Series：Gecko MT Reverse Fix
Mfr：Harwin Inc.
Package：Strip
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：6 (4 + 2 Power)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Screw Lock
Contact Length - Mating：-
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：-
Insulation Height：0.208" (5.30mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Beryllium Copper, Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T
Features：Jackscrews, Mating Flange, Polarizing Key
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A, 10A
Voltage Rating：-

Download product information

G125-MH104M3-02AD000P

Overview

The G125-MH104M3-02AD000P is a male header connector from the Harwin Gecko-SL series. It features a 6-position configuration with a 1.25 mm pitch and dual rows. The component utilizes right-angle through-hole solder pin termination for board mounting. Contact surfaces are gold-plated phosphor bronze, rated for 2 A current and 250 V voltage. Operating temperature ranges from -65 °C to +150 °C. The housing is green polyamide (PA) with UL 94 V-0 flammability rating.

Feature Summary

Right-angle DIL plug design for compact vertical board integration
Jackscrew reverse fix locking mechanism for secure mating retention
Gold-plated contacts ensure reliable signal transmission in mixed-signal environments

Applications

Mixed-signal circuit interconnections requiring power and signal separation
Industrial control systems operating within extreme temperature ranges
Compact electronic assemblies utilizing right-angle mounting constraints

Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact contact count and locking style. Ensure compatibility with corresponding female housings within the Gecko-SL ecosystem. Confirm RoHS compliance status via the manufacturer datasheet before procurement. Cross-reference the Mouser part number 855-G125MH104M3-02AD000P for accurate sourcing details.

Selection Notes

Select this component when right-angle male headers with jackscrew locking are required. The 1.25 mm pitch suits high-density applications. Verify that the 2 A current rating meets system requirements. Ensure PCB layout accommodates the right-angle profile and through-hole solder pins. Check insulation resistance specifications for high-voltage isolation needs.

Part Context

This part belongs to the Harwin Gecko-SL family of connectors. The series offers various position counts and locking options. The G125-MH104M3-02AD000P specifically addresses mixed-signal needs with its 2+4 configuration. It complements female sockets and cable assemblies within the same product line.
