G125-MH104M3-04AD000P

$49.98

Description：HDR MALE R/A 4PWR + 4SIGNAL
Series：Gecko MT Reverse Fix
Mfr：Harwin Inc.
Package：Strip

SKU:14dbed69d40f Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：HDR MALE R/A 4PWR + 4SIGNAL
Series：Gecko MT Reverse Fix
Mfr：Harwin Inc.
Package：Strip
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：8 (4 + 4 Power)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Screw Lock
Contact Length - Mating：-
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：-
Insulation Height：0.208" (5.30mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Beryllium Copper, Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T
Features：Jackscrews, Mating Flange, Polarizing Key
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A, 10A
Voltage Rating：-

Download product information

G125-MH104M3-04AD000P

Overview

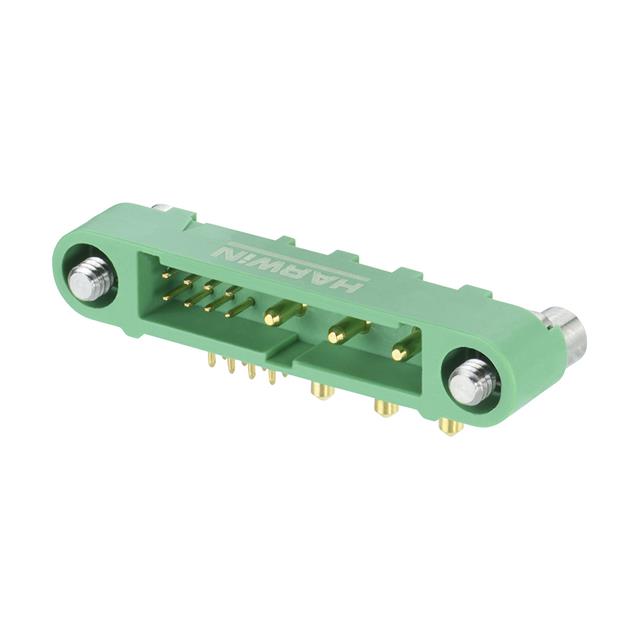

The Harwin G125-MH104M3-04AD000P is a Gecko-MT series male header connector designed for horizontal board mounting. It features an 8-position configuration with a 1.25 mm pitch, arranged as 4 power and 4 signal contacts. The component utilizes through-hole right-angle termination with solder pins. Constructed from polyamide housing with gold-plated phosphor bronze contacts, it supports a current rating of 2 A and operates within a temperature range of -65°C to +150°C.

Feature Summary

Horizontal PCB backshell kit design for integrated cable management
Mixed signal and power contact arrangement in single housing
Right-angle through-hole mounting for space-constrained applications

Applications

Industrial control systems requiring mixed signal/power connections
Automotive electronics harnesses
Consumer appliance mainboards

Procurement Notes

Verify the specific Gecko-MT series datasheet for mating compatibility with corresponding female housings and crimp contacts. Confirm that the horizontal orientation aligns with the mechanical constraints of the target enclosure. Ensure the 1.25 mm pitch matches the PCB footprint requirements precisely to avoid assembly misalignment during manufacturing.

Selection Notes

Select this part when a compact horizontal interface is required for both power distribution and low-current signaling. The Gecko-MT series offers robust mechanical retention suitable for vibration-prone environments. Consider the 2 A current rating per contact when designing thermal management strategies for high-load scenarios.

Part Context

This component belongs to Harwin's Gecko-MT product line, which specializes in modular interconnect solutions. The series is engineered for durability and ease of assembly in demanding industrial settings. The specific model integrates power and signal lines into a unified connector system, reducing overall assembly complexity compared to separate discrete connectors.
