Product Detailed Parameters
- Description：CONN HEADER R/A 6POS 1.25MM
- Series：Gecko
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.219" (5.56mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：-
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Board Lock
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：250V
Download product information
Overview

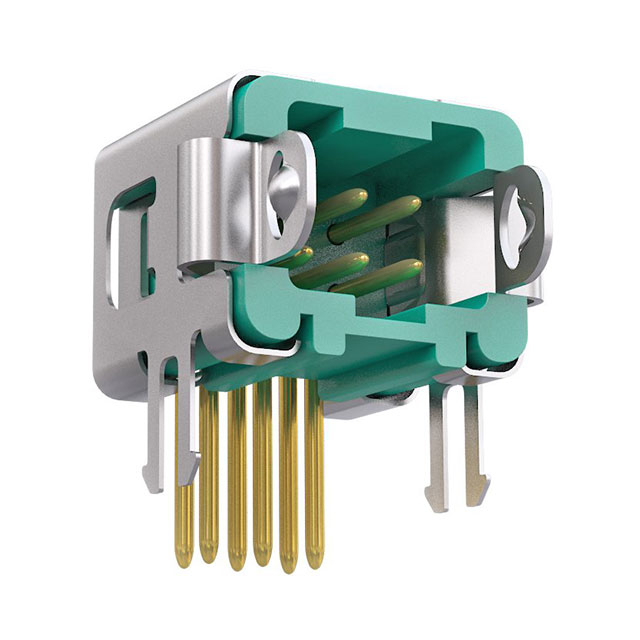

The Harwin G125-MH10605L1P is a Gecko-SL series header connector featuring 6 positions in a dual-row configuration. It utilizes a 1.25 mm pitch with right-angle through-hole termination for secure board mounting. The male pin contacts are constructed from phosphor bronze and gold-plated, rated for 2 A current. The polyamide housing provides UL 94 V-0 flammability resistance and operates between -65°C and +150°C. This component employs a polarized locking mechanism to ensure reliable mating.
Feature Summary
- Right-angle through-hole mounting design for space-efficient PCB integration
- Gold-plated phosphor bronze contacts ensuring stable signal transmission
- Polarized locking system preventing incorrect mating orientation
Applications
- Industrial control systems requiring compact interconnects
- Consumer electronics with limited vertical clearance
- Automotive electronic modules needing robust connections
Procurement Notes
Verify the specific suffix L1P against official datasheets to confirm the exact housing color, latch type, and plating thickness. Ensure compatibility with mating sockets within the same Gecko-SL family. Confirm RoHS compliance status for your region before finalizing procurement orders.
Selection Notes
Select this part when right-angle male headers are required for dense circuit layouts. The 1.25 mm pitch suits applications needing high I/O density in small footprints. Verify that the polarized lock aligns with the mating socket design to prevent assembly errors.
Part Context
This component belongs to the Harwin Gecko-SL family, designed for high-density interconnects. The series offers various configurations including vertical and right-angle options. The G125-MH10605L1P specifically addresses needs for angled male connections with secure locking features.
FAQ
What is the latching mechanism used in this connector?
The G125-MH10605L1P uses a polarized locking mechanism to ensure correct alignment and secure connection during mating.
Is this connector suitable for high-temperature environments?
Yes, it operates within a temperature range of -65°C to +150°C, making it suitable for demanding thermal conditions.
