G125-MH10605L1R

Overview

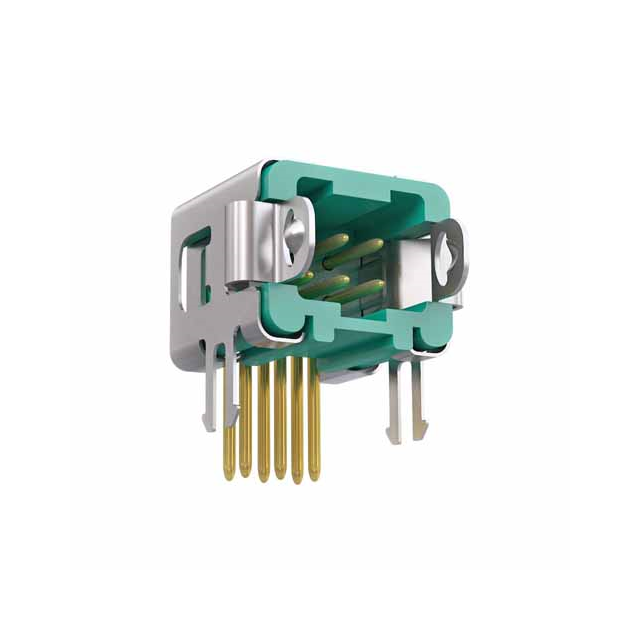

The G125-MH10605L1R is a 6-position male header from the Gecko-Latch series by Harwin. It features a 1.25 mm pitch and a 2-row configuration with right-angle through-hole mounting. The connector utilizes gold-plated phosphor bronze contacts rated for 2 A current and operates within a temperature range of -65 °C to +150 °C. Designed for board-to-board or cable connections, it includes a mechanical latch hold-down mechanism for secure attachment. The housing is made of green polyamide (PA) with UL 94 V-0 flammability rating.

Feature Summary

• Integrated mechanical latch hold-down system ensures secure mating retention
• Right-angle through-hole termination facilitates compact vertical board integration
• Gold-plated phosphor bronze contacts provide reliable electrical conductivity
• High-temperature resistant polyamide housing supports demanding thermal environments

Applications

• Board-to-board interconnections in industrial control systems
• Cable-to-board assemblies requiring secure mechanical retention
• Compact electronic modules needing right-angle signal routing
• Automotive electronics operating under high thermal stress

Procurement Notes

Verify the specific suffix 'L1R' confirms the Gecko-Latch hold-down feature rather than standard screw-lock variants. Ensure compatibility with corresponding female sockets featuring matching latch mechanisms. Confirm RoHS compliance status via official datasheets before procurement. Check lead times as availability may vary by region.

Selection Notes

Select this component when right-angle mounting and positive latching are required for 1.25 mm pitch applications. Compare against non-latching G125 variants if retention force is not critical. Verify that the 3.3 mm tail length fits within the enclosure height constraints. Ensure mating connectors support the 2 A current rating per contact.

Part Context

This part belongs to Harwin's Gecko-Latch family, designed for high-reliability connections. It complements female counterparts like the G125-FS series. The Gecko-SL series offers similar dimensions but uses screw-lock mechanisms instead of latches. This model specifically addresses needs for vibration-resistant connections without additional hardware.

Replacement Considerations

Direct substitutes include other Harwin G125-MH10605L1R units. Non-Harwin equivalents must match the 1.25 mm pitch, 2x3 configuration, right-angle THT style, and latch mechanism. Verify that alternative brands offer comparable gold plating thickness and polyamide housing ratings.
