G125-MH10605L3R

$5.64

Description：CONN HDR R/A 6POS
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:57a757ae6d41 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HDR R/A 6POS
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Latch Lock
Contact Length - Mating：-
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：-
Insulation Height：0.218" (5.55mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Nylon
Features：-
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A
Voltage Rating：450VAC/DC

Download product information

G125-MH10605L3R

Overview

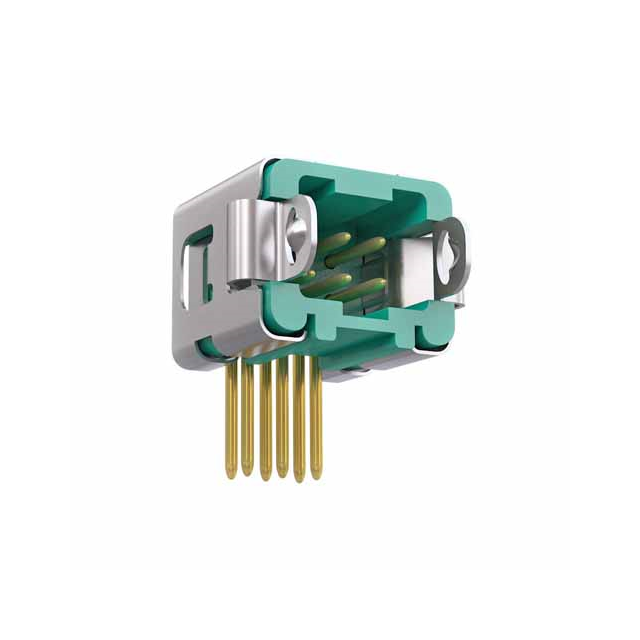

The G125-MH10605L3R is a male header connector from the Harwin Gecko-SL series, designed for through-hole mounting. It features a 1.25 mm pitch with two rows and six positions. The contacts are gold-plated phosphor bronze pins with a current rating of 2 A. The housing is green polyamide (PA) rated UL 94 V-0. Operating temperature ranges from -65 C to +150 C. Insulation resistance is 1 GOhms. The connector utilizes a jackscrew locking mechanism and has right-angle installation with 3.3 mm solder pin length.

Feature Summary

Jackscrew board mount locking system for secure connection
Right-angle through-hole termination for PCB integration
Gold-plated phosphor bronze contacts for conductivity
High-temperature polyamide housing material

Applications

Industrial control systems requiring high-reliability connections
Automotive electronics assemblies
Consumer appliance internal wiring
Telecommunications equipment interfaces

Procurement Notes

Verify the specific suffix L3R against the official Harwin datasheet to confirm the correct tape and reel packaging configuration. Ensure the jackscrew locking feature aligns with the mechanical design requirements of the target assembly. Cross-reference the RoHS compliance status with the latest manufacturer documentation before finalizing procurement orders.

Selection Notes

Select this component when a right-angle male header with a secure jackscrew locking mechanism is required. The 1.25 mm pitch suits dense PCB layouts. Verify that the 2 A current rating and 150 C maximum operating temperature meet the thermal and electrical demands of the application environment.

Part Context

This part belongs to the Harwin Gecko-SL series, which focuses on high-reliability interconnect solutions. The series offers various configurations including different row counts and termination styles. The G125-MH10605L3R specifically addresses needs for robust, locked connections in space-constrained electronic designs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Harwin directly for equivalent alternatives if this specific configuration is unavailable.
