Product Detailed Parameters
- Description：CONN HEADER R/A 6POS 1.25MM
- Series：Gecko
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.219" (5.56mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：-
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Board Lock
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：250V
Download product information
Overview

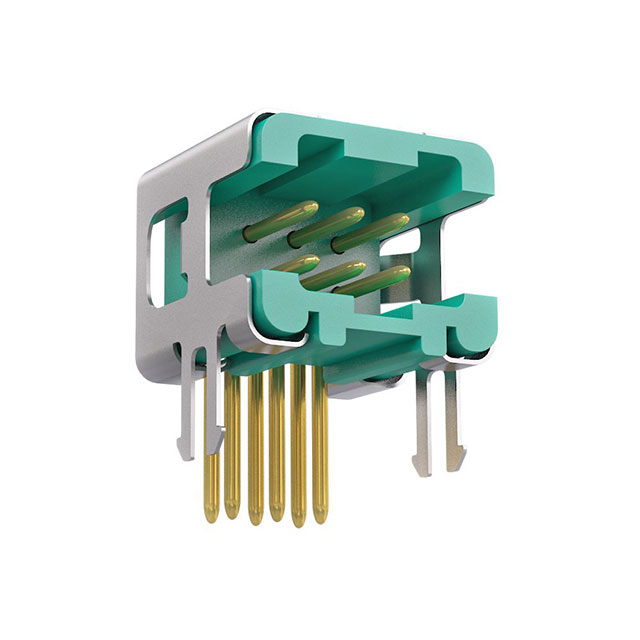

The G125-MH10605L5P is a male header connector from the Harwin Gecko-Latch series, designed for through-hole mounting. It features a 6-position configuration arranged in a double-row layout with a 1.25mm pitch and 1.25mm row spacing. The connector utilizes right-angle termination with solder pin contacts made of phosphor bronze and gold plating. It includes board lock barbs for secure PCB attachment and operates within a temperature range of -65°C to +150°C.
Feature Summary
- Features a jack-screw locking mechanism for secure mating retention
- Incorporates through-board barbs to anchor the connector to the PCB
- Constructed with green polyamide insulation rated UL 94 V-0
Applications
- Industrial control systems requiring secure signal interconnects
- Automotive electronics utilizing high-reliability micro-miniature connectors
- Test and measurement equipment needing stable board-to-board connections
Procurement Notes
Verify the specific suffix L5P confirms the horizontal latch variant and right-angle orientation. Ensure compatibility with the corresponding Gecko SL housing or mating plug. Confirm RoHS compliance status via the manufacturer datasheet before finalizing procurement orders for regulated environments.
Selection Notes
Select this component when a low-profile, right-angle male header with positive locking is required. The 1.25mm pitch allows for dense circuit layouts. Verify that the target PCB thickness accommodates the 3.3mm contact length and that the 2A current rating meets the application's electrical demands.
Part Context
This part belongs to the Harwin Gecko family, known for micro-miniature rectangular connectors. The Gecko-Latch sub-series specifically adds mechanical locking features to prevent accidental disconnection. This model serves as a standard signal interconnect solution within the broader G125 product ecosystem.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific variant. Cross-reference only with other Harwin G125-MH series headers sharing identical pitch, position count, and locking mechanisms.
