G125-MH10605L7P

Overview

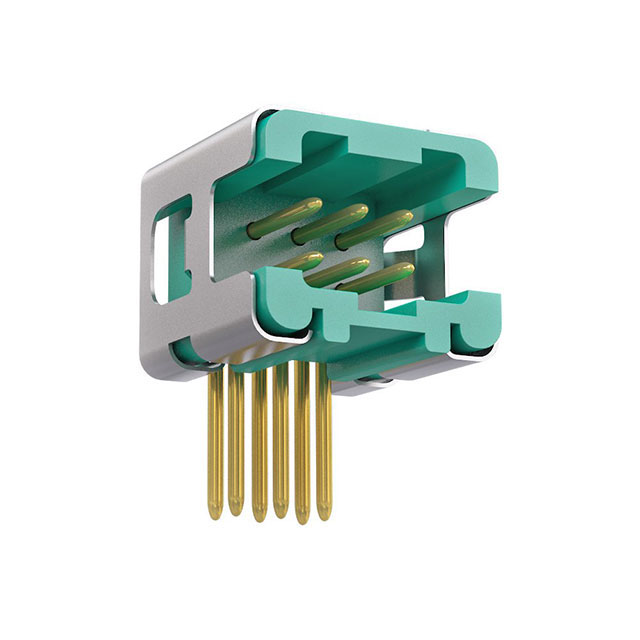

The Harwin G125-MH10605L7P is a Gecko-Latch male header connector featuring a 1.25 mm pitch and 6 positions in a dual-row configuration. Designed for surface-mount technology, it utilizes right-angle solder pins with a 3.3 mm tail length to secure the component to the PCB. The housing combines black and green polyamide materials, while phosphor bronze contacts are gold-plated for reliable signal transmission. This component supports through-hole termination methods effectively within its SMT footprint design.

Feature Summary

• Integrates a mechanical latching mechanism to secure mating connections
• Features horizontal pin orientation for compact board layout efficiency
• Utilizes tape-and-reel packaging for automated surface-mount assembly processes

Applications

• High-density electronic circuit board interconnections
• Automotive control module signal routing
• Industrial equipment internal wiring harnesses

Procurement Notes

Verify that the specific suffix L7P corresponds to the tape-and-reel packaging format required for your automated assembly lines. Confirm that the black and green color coding aligns with your manufacturing visual inspection standards. Ensure compatibility with the Gecko-Latch mating series before finalizing procurement orders to prevent interface mismatches.

Selection Notes

Choose this model when space constraints require a low-profile, right-angle connection solution. The integrated latch provides superior retention compared to standard headers. Verify that the 1.25 mm pitch matches your existing footprint design. Consider the thermal limits of the polyamide housing during high-temperature soldering profiles.

Part Context

This part belongs to the Harwin Gecko family, known for micro-miniature rectangular connectors. The Gecko-Latch sub-series specifically emphasizes secure locking mechanisms for vibration-prone environments. It serves as a specialized variant within the broader G125 product line, focusing on robust signal integrity and mechanical stability.

Replacement Considerations

Direct substitutes must match the 1.25 mm pitch, 6-position count, and dual-row layout. Verify that any alternative also includes the horizontal latch feature and compatible SMT termination style. Cross-reference the mechanical dimensions to ensure board space compatibility.
