G125-MH10605L7R

Overview

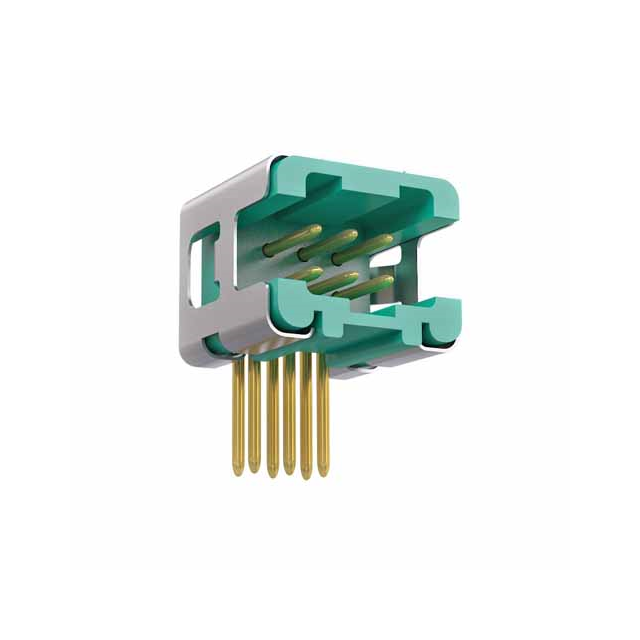

The Harwin G125-MH10605L7R is a male header connector from the Gecko-SL series, featuring a 1.25 mm pitch and 6 positions in a dual-row configuration. It utilizes right-angle through-hole mounting with solder pin termination and a jackscrew locking mechanism. The contacts are gold-plated phosphor bronze, rated for 2 A current at 450 V. Operating temperatures range from -65°C to +150°C, with UL 94 V-0 flammability rating.

Feature Summary

• Jackscrew board mount system for secure mechanical retention
• Right-angle through-hole design for compact PCB integration
• Gold-plated contacts ensuring reliable signal transmission

Applications

• Stacking interconnects in dense electronic assemblies
• Board-to-board connections requiring high reliability
• Cable-to-board interfaces in harsh environments

Procurement Notes

Verify the specific suffix 'L7R' against official Harwin documentation to confirm exact plating thickness, tape/reel specifications, and RoHS compliance status. Ensure compatibility with mating female sockets within the same Gecko-SL family before procurement.

Selection Notes

Select this component when right-angle male headers with screw-lock retention are required. Confirm that the 1.25 mm pitch and 6-position count match the target PCB footprint. Verify that the operating temperature range meets environmental requirements.

Part Context

Part of the Harwin Gecko-SL high-reliability connector system designed for demanding applications. The series offers low-profile solutions suitable for stacking and board-to-board interconnects where vibration resistance and secure locking are critical.

Replacement Considerations

Compatible mating parts include G125-FV10605F2P and similar Gecko-SL female sockets. Verify pinout and physical dimensions before substitution.
