G125-MH10605M4P

$19.18

Description：CONN HDR 1.25MM R/A 6POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip

SKU:00fee293a6e1 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HDR 1.25MM R/A 6POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Screw Lock
Contact Length - Mating：-
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：-
Insulation Height：0.209" (5.30mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A
Voltage Rating：450V

Download product information

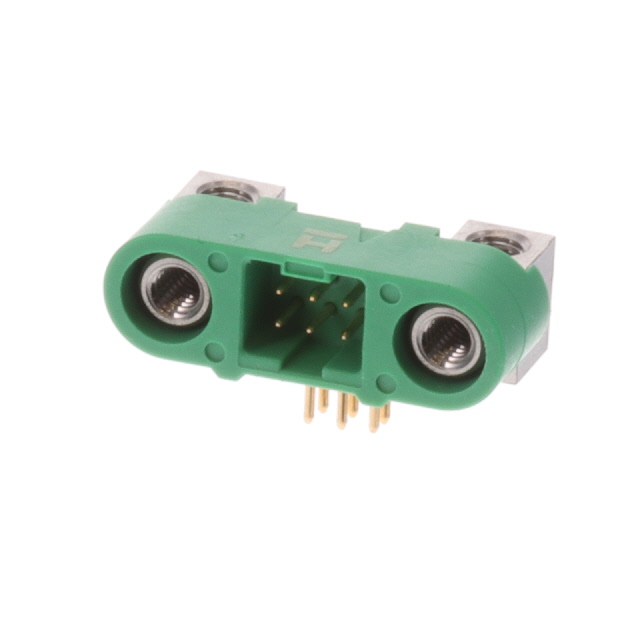

G125-MH10605M4P

Overview

The G125-MH10605M4P is a 6-position male plug connector from the Harwin Gecko-SL series. It features a 1.25 mm pitch and 2-row double in-line (DIL) configuration with 1.25 mm row spacing. Designed for right-angle through-hole mounting, it utilizes screw-lock board mount termination. The contacts are gold-plated phosphor bronze rated for 2 A current and 450 V voltage. Operating temperature ranges from -65°C to +150°C. The green polyamide housing meets UL 94 V-0 flammability standards.

Feature Summary

Screw-lock jackscrew fastening mechanism provides secure mating retention
Right-angle through-hole design facilitates compact PCB layout integration
Gold-plated phosphor bronze contacts ensure reliable signal transmission

Applications

Industrial control systems requiring high-reliability interconnects
Automotive electronics applications demanding robust thermal performance
Test and measurement equipment needing secure board-to-board connections

Procurement Notes

Verify that the specific suffix 'P' indicates cut-tape packaging rather than reel packaging when ordering. Confirm compatibility with mating sockets within the G125 series. Ensure PCB footprint matches the right-angle through-hole specifications. Check RoHS compliance documentation for final assembly requirements. Validate that the screw-lock feature aligns with mechanical constraints of the target enclosure.

Selection Notes

Select this component when right-angle orientation is required for space-constrained designs. The screw-lock feature is essential for applications subject to vibration or shock. Consider the 1.25 mm pitch for high-density routing needs. Verify that the 2 A current rating suffices for the intended circuit load. Ensure the operating temperature range covers the environmental conditions of the deployment site.

Part Context

This part belongs to the Harwin Gecko-SL family, known for high-reliability interconnect solutions. The G125 series offers various configurations including vertical and right-angle options. The Screw-Lok technology distinguishes these connectors by providing positive locking without additional hardware. This specific model represents the male plug variant for board-to-board or cable-to-board interfaces.
