Product Detailed Parameters
- Description：CONN HDR 1.25MM R/A 6POS
- Series：Gecko SL
- Mfr：Harwin Inc.
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.209" (5.30mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

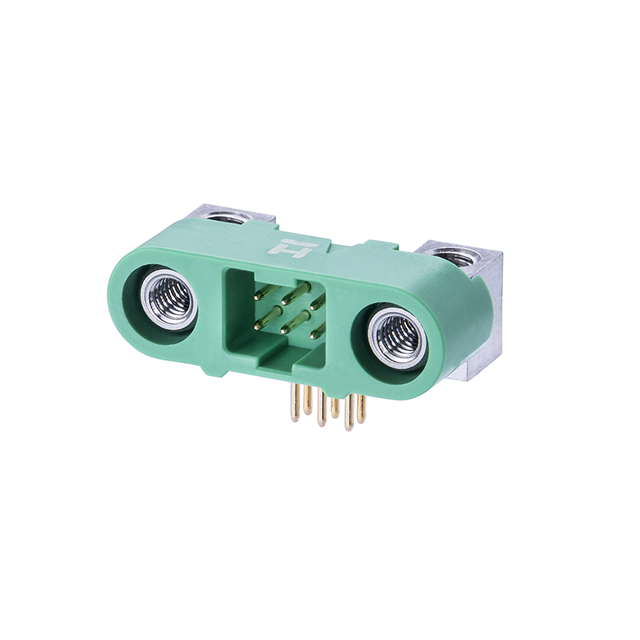

The Harwin G125-MH10605M4R is a Gecko-SL series male plug connector featuring a 1.25 mm pitch and 3+3 position configuration. It utilizes right-angle through-hole termination with screw-lock board mounting for secure installation. The contacts are gold-plated phosphor bronze, rated for 2 A current and 450 V voltage. Operating temperatures range from -65°C to +150°C. The green polyamide housing meets UL 94 V-0 flammability standards, ensuring high reliability in demanding electronic applications.
Feature Summary
- Screw-Lok jackscrew locking mechanism provides positive mating retention
- Right-angle DIL design facilitates compact circuit board layouts
- Gold-plated contacts ensure reliable signal transmission
Applications
- Industrial control systems requiring secure connections
- Automotive electronics harnesses
- Consumer appliance internal wiring
Procurement Notes
Verify the specific suffix M4R confirms the right-angle through-hole variant with screw-lock features. Confirm RoHS compliance status via official documentation before integration. Ensure PCB footprint matches the 1.25 mm pitch and 3.2 mm tail length specifications to guarantee proper solder joint formation and mechanical stability during assembly processes.
Selection Notes
Select this component when right-angle male pin headers with enhanced mechanical retention are required. The Screw-Lok feature distinguishes it from standard push-fit connectors, offering superior vibration resistance. Verify that the 2 A current rating and 450 V insulation withstand the system's electrical loads and environmental temperature extremes effectively.
Part Context
This part belongs to the Harwin Gecko-SL family, designed for high-reliability interconnects. The series emphasizes robust mechanical locking and stable electrical performance across wide temperature ranges. It serves as a specialized solution for applications where standard connectors may fail due to vibration or thermal cycling stresses.
Replacement Considerations
Direct substitutes within the same series include G125-MH11605M4R for different position counts. Verify identical pitch, locking mechanism, and termination style before cross-referencing other manufacturers' equivalents to ensure mechanical compatibility.
