G125-MH108M3-03AD000P

Overview

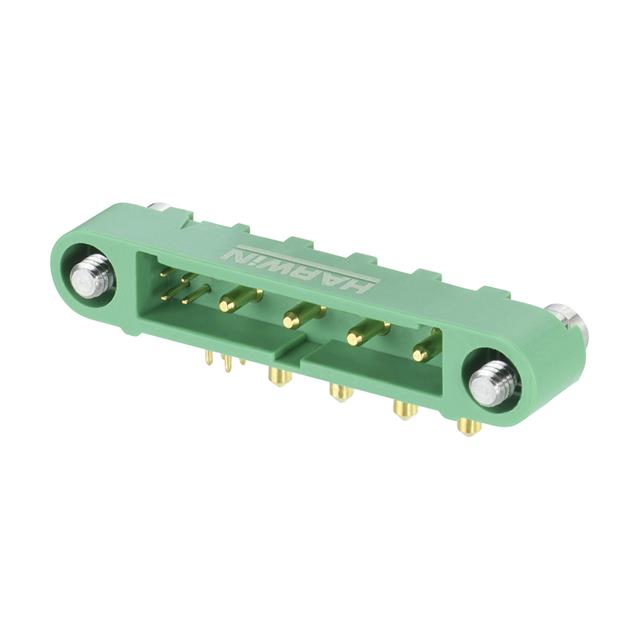

The Harwin G125-MH108M3-03AD000P is a Gecko-Latch male header connector featuring an 8-position, two-row configuration with a 1.25 mm pitch. Designed for surface mount technology (SMT), it utilizes gold-plated phosphor bronze contacts housed in green nylon. The component supports a maximum current of 2 A and operates within a temperature range of -65 °C to +150 °C. It incorporates a latch mechanism for secure mating and meets UL 94 V-0 flammability standards.

Feature Summary

• Surface mount design for automated PCB assembly
• Integrated mechanical latching system for secure connection retention
• Gold-plated contacts ensuring reliable signal transmission

Applications

• Wire-to-board interconnections
• High-density electronic assemblies
• Industrial control systems

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to ensure correct contact plating, housing color, and latch type specifications. Confirm RoHS compliance status and check for any recent product change notices or lifecycle notifications prior to finalizing procurement orders.

Selection Notes

Select this component when a low-profile SMT solution with positive locking capability is required. Ensure the target application accommodates the horizontal orientation and verify that the 1.25 mm pitch aligns with the mating wire harness or board footprint requirements.

Part Context

This part belongs to the Gecko-Latch series by Harwin, which specializes in compact, high-reliability connectors. The series is engineered for applications demanding robust mechanical retention in space-constrained environments, offering a balance between small form factor and secure electrical connectivity.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other Gecko-Latch variants from Harwin only if pin count, pitch, and mounting style match exactly.
