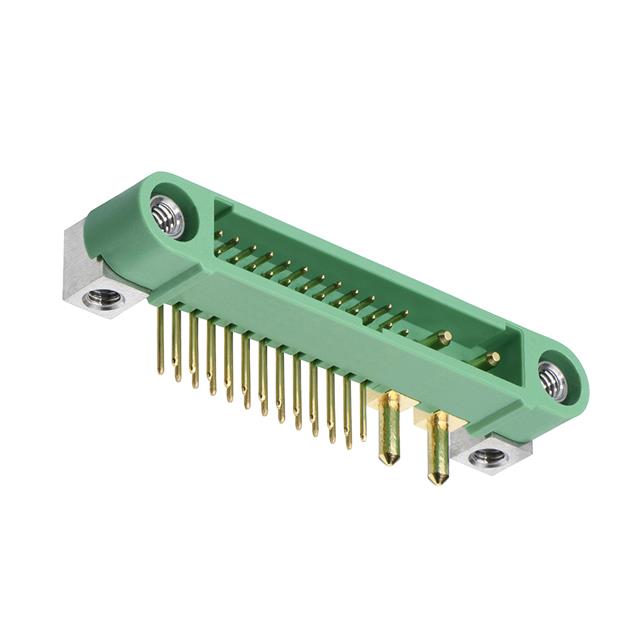

G125-MH108M4-06AD000P

Product Detailed Parameters

• Description：HDR MALE R/A 6PWR + 8SIGNAL
• Series：Gecko MT
• Mfr：Harwin Inc.
• Package：Strip
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.049" (1.25mm)
• Number of Positions：14 (8 + 6 Power)
• Number of Rows：2
• Row Spacing - Mating：0.049" (1.25mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Screw Lock
• Contact Length - Mating：-
• Contact Length - Post：0.130" (3.30mm)
• Overall Contact Length：-
• Insulation Height：0.208" (5.30mm)
• Contact Shape：Circular
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Gold
• Contact Material：Beryllium Copper, Phosphor Bronze
• Insulation Material：Polyamide (PA4T), Nylon 4T
• Features：Mating Flange, Mounting Flange, Polarizing Key
• Operating Temperature：-65°C ~ 150°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Green
• Current Rating (Amps)：2A, 10A
• Voltage Rating：-
