Product Detailed Parameters
- Description：CONN HEADER R/A 10POS 1.25MM
- Series：Gecko
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.219" (5.56mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：-
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Solder Retention
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：250V
Download product information
Overview

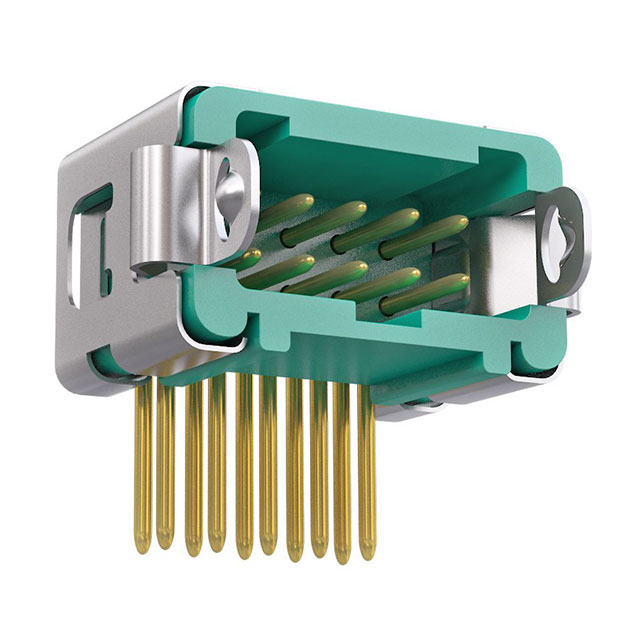

The G125-MH11005L3P is a male plug connector from the Harwin Gecko-Latch series, designed for wire-to-board applications. It features a 1.25 mm pitch and a 2x05 position configuration (10 positions total) arranged in two rows. The component utilizes a horizontal through-hole mounting style with solder pin termination. Constructed with phosphor bronze contacts, it supports an operating temperature range from -65°C to +150°C.
Feature Summary
- Gecko-Latch mechanical locking system ensures secure connection retention
- Horizontal surface-mount compatible through-hole termination
- High-reliability design suitable for demanding environments
Applications
- Wire-to-board interconnections
- Industrial control systems
- Automotive electronics
- Telecommunications equipment
Procurement Notes
Verify the specific suffix L3P against the official Harwin datasheet to confirm the exact reel quantity and tape specifications. Ensure the ordering code matches the required 2x05 position count and horizontal orientation. Cross-reference the RoHS compliance status directly with the manufacturer's current documentation before finalizing procurement orders.
Selection Notes
Select this part when a low-profile, high-density connector is required for horizontal PCB integration. The Gecko-Latch mechanism provides superior retention compared to standard headers. Verify that the phosphor bronze contact material meets the electrical conductivity requirements of the target circuit application.
Part Context
This component belongs to the Harwin Gecko G125 series, which focuses on high-reliability interconnects. The series is characterized by its robust locking mechanisms and compact 1.25 mm pitch. It is engineered for sectors requiring stable performance under thermal and mechanical stress.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 1.25 mm pitch, 2x05 position count, and horizontal through-hole mounting style.
