G125-MH11005L5P

Overview

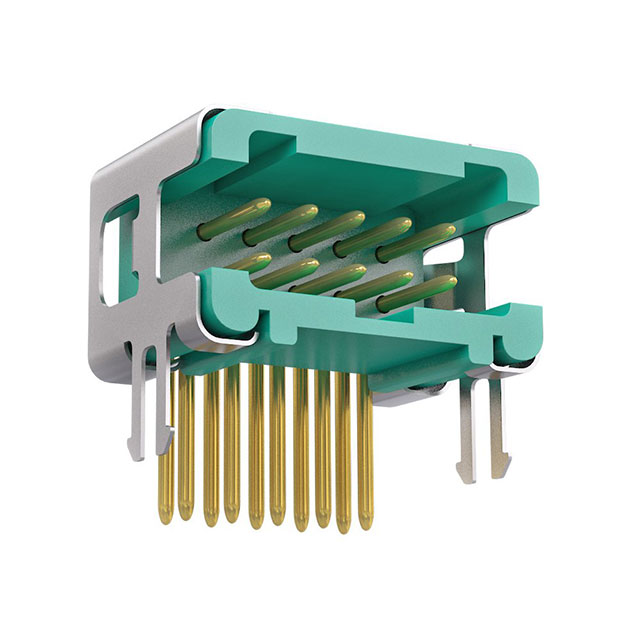

The Harwin G125-MH11005L5P is a Gecko-Latch male plug connector featuring a 1.25 mm pitch and 10 positions in a double inline configuration. Designed for through-hole mounting, it utilizes right-angle termination with gold-plated phosphor bronze contacts rated for 2 A current. The polyamide housing operates between -65°C and +150°C, offering UL 94 V-0 flammability resistance.

Feature Summary

• Jackscrew locking mechanism secures mating connections against vibration
• Right-angle horizontal orientation facilitates compact board layout
• Gold-plated contacts ensure reliable signal transmission

Applications

• Wire-to-board interconnections
• Board-to-board assembly
• High-reliability industrial electronics

Procurement Notes

Verify the specific suffix L5P to confirm the 3.2mm pin length and tape-and-reel packaging format. Ensure compatibility with the corresponding female socket within the Gecko-Latch series. Confirm RoHS compliance status via the manufacturer datasheet before integration into regulated assemblies.

Selection Notes

Select this component when right-angle through-hole mounting is required alongside mechanical latching security. The 1.25 mm pitch suits dense layouts, while the 2 A rating supports moderate power applications. Verify that the PCB hole pattern matches the specified pin dimensions for proper insertion.

Part Context

This part belongs to the Harwin Gecko-Latch family, engineered for extreme shock and vibration environments. It complements other Gecko-SL and standard Gecko connectors by providing enhanced mechanical retention through its unique jackscrew system, ensuring stable connections in demanding operational conditions.

Replacement Considerations

Direct substitutes include G125-MH11005M4R, which shares identical electrical parameters but differs in pin length and packaging type. Cross-reference mechanical drawings to ensure footprint compatibility before substitution.
