G125-MH11005L7P

Overview

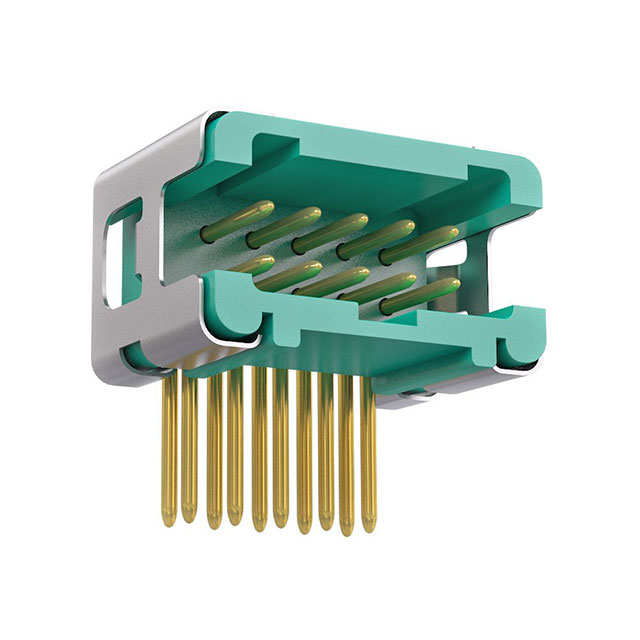

The G125-MH11005L7P is a Gecko-Latch male header connector manufactured by Harwin Inc. It features a 1.25mm pitch with 10 positions arranged in a 2x5 configuration. Designed for surface mount installation, it utilizes gold-plated phosphor bronze contacts and polyamide insulation rated UL94 V-0. The connector supports a current rating of 2A and operates within a temperature range of -65°C to +150°C.

Feature Summary

• Gecko-Latch series design with horizontal orientation
• Surface mount termination with hold-down locking mechanism
• Gold-plated contacts on phosphor bronze substrate

Applications

• Wire-to-board interconnections
• Board-to-board connections
• High-reliability electronic assemblies

Procurement Notes

Verify the specific suffix L7P against official Harwin documentation to confirm the exact pin count, row configuration, and packaging format. Ensure the selected variant matches the required surface mount footprint and locking style for the target application.

Selection Notes

Select this component when a low-profile, high-density connection is required for space-constrained designs. The Gecko-Latch system provides secure retention for surface mount applications, while the 1.25mm pitch offers significant space savings compared to larger pitch alternatives.

Part Context

This part belongs to the Harwin G125 Gecko family, which emphasizes high performance in miniature packages. The series is engineered for demanding environments, offering resistance to extreme vibration and wide temperature fluctuations through patented four-finger copper alloy contact technology.

Replacement Considerations

Direct substitutes are not publicly confirmed for this specific Gecko-Latch variant. Evaluate other G125 series headers or housings from Harwin only if they match the 1.25mm pitch, 2-row layout, and surface mount requirements.
