G125-MH11005M4P

$20.09

Description：CONN HDR 1.25MM R/A 10POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip

SKU:918a91a23bef Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HDR 1.25MM R/A 10POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Screw Lock
Contact Length - Mating：-
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：-
Insulation Height：0.209" (5.30mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A
Voltage Rating：450V

Download product information

G125-MH11005M4P

Overview

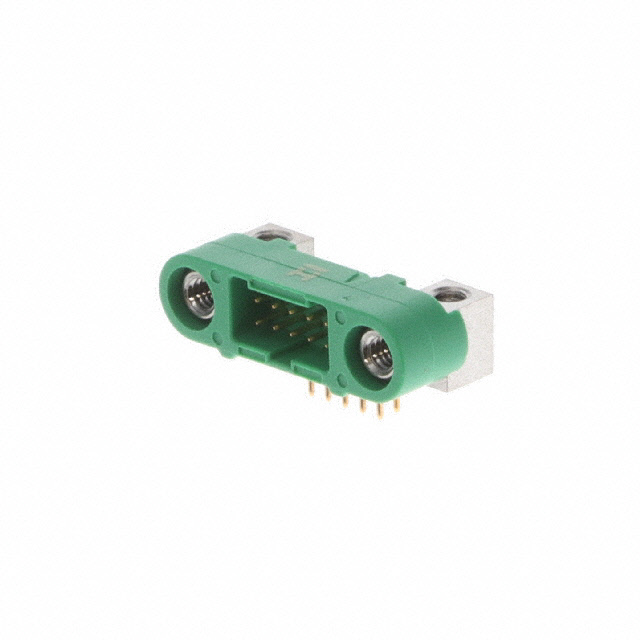

The Harwin G125-MH11005M4P is a Gecko-SL series male pin header featuring 10 positions in a dual inline (DIL) configuration. It utilizes a 1.25 mm pitch with a 1.25 mm row spacing across two rows. Designed for right-angle through-hole mounting, the connector employs solder pins with a 3.3 mm termination length. The contacts are gold-plated phosphor bronze, rated for 2 A current and 450 V voltage. Operating temperatures range from -65°C to +150°C. The housing is constructed from green polyamide (PA) with UL 94 V-0 flammability rating, incorporating a jackscrew locking mechanism.

Feature Summary

Jackscrew board mount locking system for secure connection
Right-angle through-hole termination for PCB integration
Gold-plated phosphor bronze contacts for conductivity
Polyamide insulation housing with high thermal stability

Applications

Wire-to-board interconnections
General electronic equipment assembly
Automotive circuit connections

Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm mechanical attributes such as contact plating thickness and housing color. Ensure compatibility with mating sockets within the Gecko-SL family. Confirm RoHS compliance status via official documentation before procurement. Cross-reference the part number with authorized distributors to validate availability and authenticity.

Selection Notes

Select this component for applications requiring right-angle DIL headers with screw-lock retention. The 1.25 mm pitch suits dense PCB layouts. Verify that the 2 A current rating meets circuit requirements. Ensure the through-hole footprint matches the PCB design. Consider the operating temperature range for environmental suitability.

Part Context

This part belongs to the Harwin Gecko-SL series, characterized by screw-lock latching mechanisms. The series offers various configurations for wire-to-board and board-to-board connections. The G125 prefix indicates the specific product line within the broader connector portfolio. This model represents a standard male header variant designed for reliable electrical interconnection.
