Product Detailed Parameters
- Description：CONN HDR 1.25MM R/A 12POS
- Series：Gecko SL
- Mfr：Harwin Inc.
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.209" (5.30mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Jackscrews, Mating Flange, Pick and Place, Polarizing Key
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

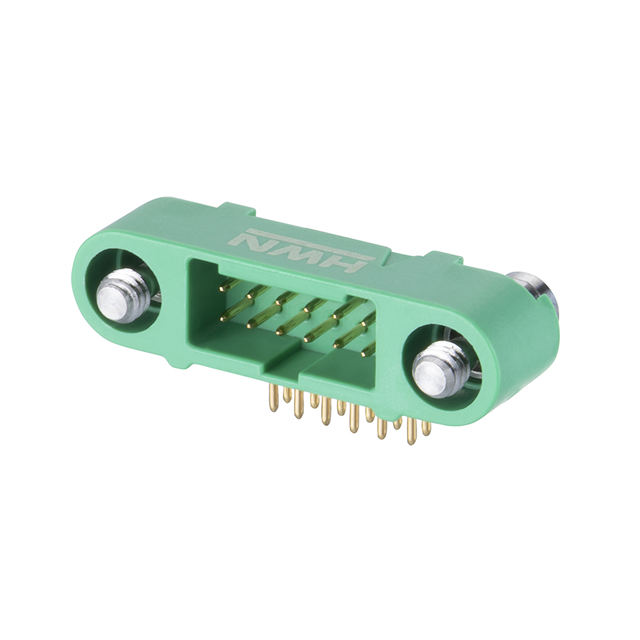

The Harwin G125-MH11205M3R is a Gecko-SL series header connector featuring a 1.25 mm pitch and 20 positions in a dual-row configuration. It utilizes gold-plated phosphor bronze male pins with a 3.3 mm solder tail length for through-hole right-angle mounting. The housing is green polyamide (PA) rated UL 94 V-0, supporting -65°C to +150°C operation. Rated at 2 A per contact with 1 GOhm insulation resistance, it employs a jackscrew locking mechanism.
Feature Summary
- Patented four-finger copper alloy contacts ensure high reliability under extreme vibration conditions up to 100g.
- Jackscrew locking system provides secure board-to-board or wire-to-board connections.
- Low-profile design offers significant space savings compared to larger pitch connectors.
Applications
- Wire-to-board interconnections
- Board-to-board stacking
- High-reliability industrial electronics
Procurement Notes
Verify the specific suffix 'M3R' against the official Harwin datasheet to confirm packaging type and termination details. Confirm RoHS compliance status and lead times with authorized distributors, as availability may vary. Ensure the jackscrew locking feature matches the assembly requirements.
Selection Notes
Select this component when a 1.25 mm pitch, 20-position, right-angle male header is required. The jackscrew lock is essential for vibration-resistant applications. Verify that the 2 A current rating and 150°C temperature limit meet the circuit specifications.
Part Context
This part belongs to the Harwin Gecko-SL family, designed for demanding environments requiring high performance in miniature packages. The series is known for its durability and space efficiency, suitable for compact electronic designs needing robust connectivity.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific variant. Consider other Gecko-SL headers with matching pitch and position counts if availability is an issue.
FAQ
What is the locking mechanism?
The G125-MH11205M3R uses a jackscrew locking mechanism to secure the connection.
What is the contact material?
The contacts are made of phosphor bronze with gold plating.
