Product Detailed Parameters
- Description：CONN HDR 1.25MM R/A 12POS
- Series：Gecko SL
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.209" (5.30mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

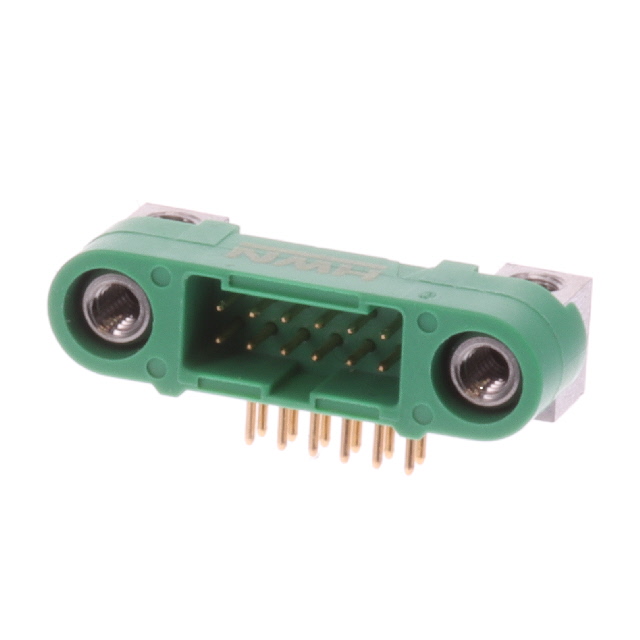

The Harwin G125-MH11205M4P is a male plug connector from the Gecko-SL series, featuring a 12-position (6+6) double-row configuration with a 1.25 mm pitch. Designed for right-angle through-hole mounting, it utilizes phosphor bronze contacts with gold plating and a green polyamide housing. The unit supports a current rating of 2 A and operates within a temperature range of -65°C to +150°C. It incorporates a jackscrew locking mechanism and meets UL 94 V-0 flammability standards.
Feature Summary
- Incorporates a jackscrew locking mechanism for secure board-to-board or cable connections.
- Features right-angle double-row geometry optimized for horizontal PCB termination.
- Constructed with halogen-free polyamide insulation and gold-plated phosphor bronze contacts.
Applications
- Board-to-board interconnects
- Cable-to-board assemblies
- Automotive electronics systems
Procurement Notes
Verify that the specific part number matches the required 12-position count and right-angle orientation. Confirm that the jackscrew locking style aligns with the mechanical design requirements. Ensure the operating environment falls within the specified -65°C to +150°C thermal limits before finalizing procurement decisions.
Selection Notes
Select this component when a low-profile, right-angle male header is required for dense circuit layouts. The 1.25 mm pitch allows for high pin counts in limited spaces. Consider the jackscrew feature if vibration resistance and positive locking are critical for the application stability.
Part Context
This connector belongs to the Harwin Gecko-SL family, which emphasizes high reliability and compact form factors. The series is engineered for demanding environments, offering robust mechanical performance alongside electrical stability. The specific model integrates standard industry interfaces with specialized locking features.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific component variant.
