G125-MH11205M4R

$12.61

Description：CONN HDR 1.25MM R/A 12POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:a1c5d63bdc89 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HDR 1.25MM R/A 12POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Screw Lock
Contact Length - Mating：-
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：-
Insulation Height：0.209" (5.30mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A
Voltage Rating：450V

Download product information

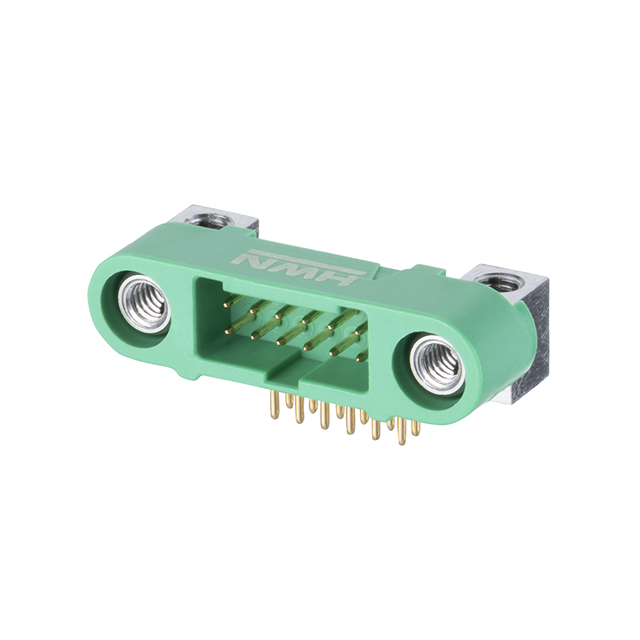

G125-MH11205M4R

Overview

The G125-MH11205M4R is a male plug header from the Harwin Gecko-SL series, featuring a 1.25 mm pitch and 20 positions arranged in a dual inline (DIL) configuration. It utilizes right-angle through-hole solder pin termination with a 3.3 mm contact length. The connector employs a Screw-Lok board mount mechanism for secure installation. Rated for 2 A current at UL 94 V-0 flammability, it operates between -65°C and +150°C. Gold-plated phosphor bronze contacts ensure reliable performance.

Feature Summary

Screw-Lok board mount system provides secure mechanical fixation
Right-angle DIL design optimizes space efficiency
Gold-plated phosphor bronze contacts ensure conductivity

Applications

Board-to-board interconnects
Cable-to-board connections
Industrial control systems
Telecommunications equipment

Procurement Notes

Verify the specific suffix 'M4R' to confirm the Screw-Lok mounting style and reel packaging format. Ensure compatibility with the mating socket housing within the Gecko-SL family. Confirm RoHS compliance status via official documentation before integration into regulated assemblies.

Selection Notes

Select this component for applications requiring right-angle orientation and robust mechanical retention. The 1.25 mm pitch suits high-density layouts. Verify that the 3.3 mm contact length aligns with PCB thickness requirements. Consider the Screw-Lok feature if vibration resistance is critical for the deployment environment.

Part Context

This part belongs to the Gecko-SL series, designed for compact electronic modules. It complements other connectors in the range by offering specialized mounting options. The series supports various configurations for diverse industrial and commercial connectivity needs.
