Product Detailed Parameters
- Description：CONN HEADER R/A 16POS 1.25MM
- Series：Gecko
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.219" (5.56mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：-
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Board Lock
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：250V
Download product information
Overview

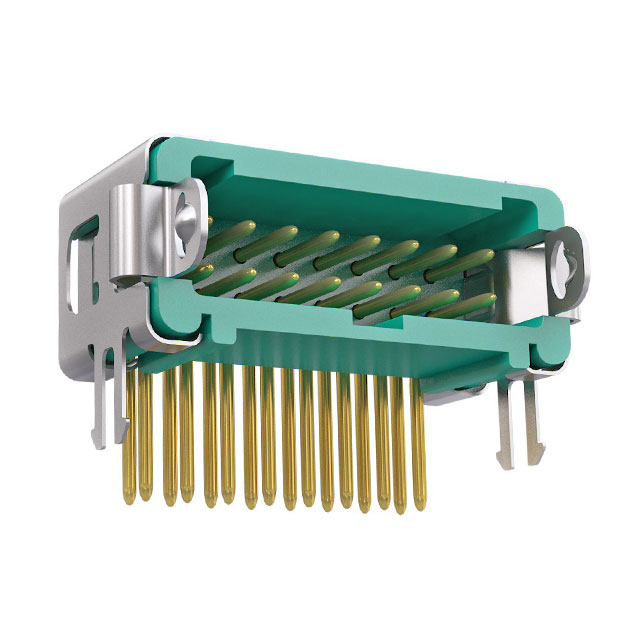

The G125-MH11605L1P is a 16-position male pin header from the Harwin Gecko-SL series, featuring a 1.25 mm pitch and two rows. Designed for through-hole mounting, it utilizes a right-angle configuration with solder pin termination. The connector supports a rated current of 2 A and operates within a temperature range of -65°C to +150°C. It incorporates a latch lock fastening mechanism and gold-plated phosphor bronze contacts housed in green polyamide insulation.
Feature Summary
- Right-angle through-hole design for compact board stacking
- Integrated latch lock fastening system for secure mating
- Gold-plated phosphor bronze contacts for reliable conductivity
Applications
- High-density electronic assemblies requiring vertical space efficiency
- Industrial control systems needing robust mechanical retention
- Automotive electronics operating in extreme temperature environments
Procurement Notes
Verify the specific suffix 'L1P' against official datasheets to confirm right-angle orientation and tape-and-reel packaging. Ensure compatibility with corresponding female sockets in the Gecko-SL family. Confirm RoHS compliance status via manufacturer documentation prior to integration into regulated supply chains.
Selection Notes
Select this component when right-angle through-hole connectivity is required alongside high mechanical stability. The integrated latch system distinguishes it from standard headers, offering superior retention without additional hardware. Verify that the 1.25 mm pitch aligns with existing board layout constraints and mating partner specifications.
Part Context
This part belongs to the Gecko-SL series, characterized by slim profiles and secure locking mechanisms. It complements other Gecko-SL variants like G125-MV11605M1P, differing primarily in mounting style and angle. The series targets applications demanding reliable connections in constrained spaces.
Replacement Considerations
G125-MH11605L0P serves as a potential alternative if reel packaging differs but maintains identical electrical and mechanical specifications. Cross-reference mating socket availability before substitution.
