G125-MH11605L1R

Overview

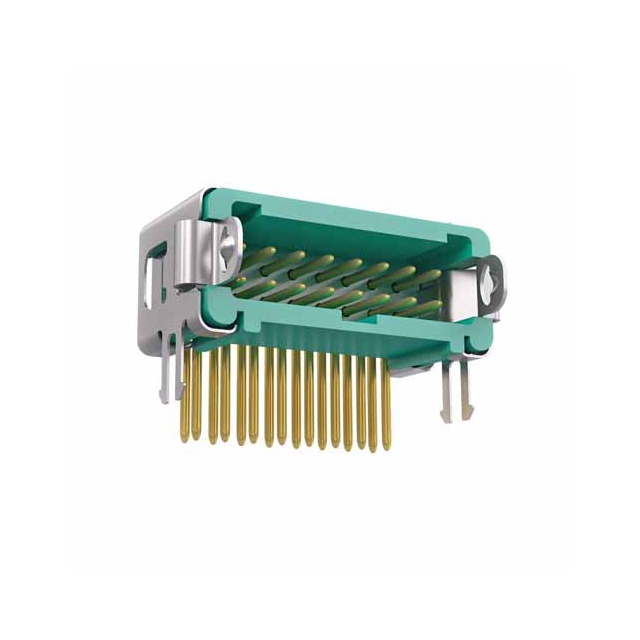

The Harwin G125-MH11605L1R is a Gecko-Latch male header connector featuring a 1.25 mm pitch and 1.25 mm row spacing. It provides 16 positions across two rows with right-angle through-hole mounting. The contacts are gold-plated phosphor bronze pins rated for 2 A current, with a 3.0 mm tail length. Designed for wire-to-board applications, it operates within a temperature range of -65°C to +150°C and utilizes a latch lock mechanism.

Feature Summary

• Features a secure latch lock mechanism for reliable mating retention
• Utilizes gold-plated phosphor bronze contacts for corrosion resistance
• Supports right-angle through-hole PCB mounting for space-efficient layouts

Applications

• Wire-to-board interconnections
• High-density electronic assemblies
• Industrial control systems

Procurement Notes

Verify the specific suffix L1R against official datasheets to confirm pin count and mechanical dimensions. Ensure compatibility with mating sockets from the same Gecko-Latch series. Confirm RoHS compliance status and packaging details prior to ordering. Cross-reference manufacturer part numbers to avoid substitution errors.

Selection Notes

Select this component for applications requiring high-density connections with secure latching. The 1.25 mm pitch allows for compact designs compared to standard 2.54 mm headers. Verify that the right-angle orientation fits the enclosure constraints. Ensure the 2 A current rating meets the circuit requirements.

Part Context

This part belongs to the Harwin Gecko-Latch series, designed for robust board-to-board and wire-to-board connections. The series emphasizes secure locking mechanisms and high reliability in demanding environments. It complements other Gecko connectors by offering specialized latching features for enhanced mechanical stability.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical interchangeability carefully if considering alternatives from other manufacturers due to unique pitch and latching specifications.
