G125-MH12005M3R

Overview

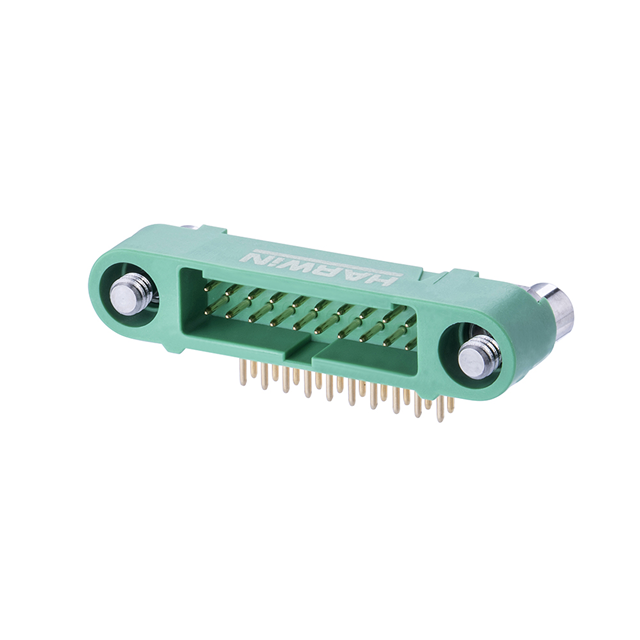

The Harwin G125-MH12005M3R is a Gecko-SL series male header connector featuring a 1.25 mm pitch and 20 positions in a dual-row configuration. Designed for right-angle through-hole mounting, it utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. The component supports a current rating of 2 A and operates within a temperature range of -65°C to +150°C. It incorporates a jackscrew locking mechanism and is housed in green polyamide (PA) insulation rated UL 94 V-0.

Feature Summary

• Features a jackscrew locking system for secure board-to-board connection
• Utilizes gold-plated phosphor bronze contacts for enhanced conductivity
• Constructed with UL 94 V-0 rated green polyamide housing

Applications

• Wire-to-board interconnections
• Right-angle PCB mounting applications
• General electronic equipment requiring secure headers

Procurement Notes

This component is officially listed as obsolete by the manufacturer. Verify end-of-life status and availability of last-time buys before finalizing design-in decisions. Ensure compliance with RoHS requirements and confirm that alternative sourcing channels provide authentic parts to avoid counterfeit risks during procurement.

Selection Notes

Select this part for applications requiring a 1.25 mm pitch male header with right-angle orientation. The 20-position dual-row layout suits dense circuit layouts. Consider the jackscrew feature if vibration resistance is critical. Verify that the 2 A current rating and thermal limits align with the specific operational environment of the target device.

Part Context

Part of the Harwin Gecko-SL family, known for high-density interconnect solutions. This specific model represents a standard male header variant optimized for through-hole assembly. It complements the broader Gecko ecosystem designed for robust performance in demanding industrial and consumer electronics environments.

Replacement Considerations

As an obsolete component, direct substitutes are not explicitly confirmed in public documentation. Evaluate other Gecko-SL series headers or generic 1.25 mm pitch connectors with compatible mechanical dimensions and electrical ratings for potential cross-referencing.
