G125-MH12005M4R

Overview

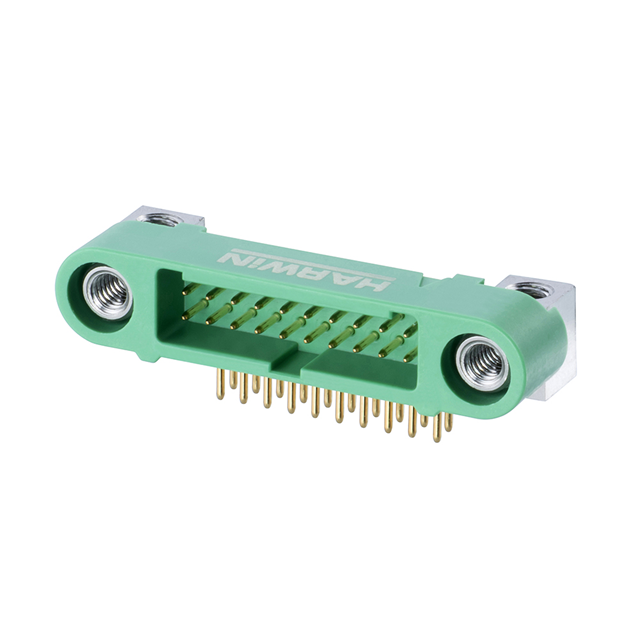

The Harwin G125-MH12005M4R is a Gecko-SL series male plug header featuring a 1.25 mm pitch and 20 positions in a dual-in-line right-angle configuration. It utilizes through-hole solder pin termination with gold-plated phosphor bronze contacts rated for 2 A. The connector employs a jackscrew locking mechanism and operates within a temperature range of -65°C to +150°C.

Feature Summary

• Patented four-finger copper alloy contact design ensures high reliability under extreme vibration conditions.
• Jackscrew board mount locking system provides secure mechanical retention for the mating housing.
• Low-profile shrouded construction offers significant space savings compared to standard high-performance connectors.

Applications

• Wire-to-board interconnections requiring high-density routing
• Electronic designs operating in environments with extreme vibration
• Applications necessitating reliable connections across wide temperature ranges

Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheet specifications. Confirm that the jackscrew locking feature and gold plating meet project requirements. Ensure the through-hole right-angle form factor aligns with PCB layout constraints before finalizing procurement orders.

Selection Notes

Select this part when a robust, high-reliability connection is required in space-constrained applications. The Gecko-SL series is suitable for demanding environments due to its vibration resistance and wide thermal operating range. Consider the specific right-angle orientation and screw-locking mechanism during mechanical integration planning.

Part Context

This component belongs to the Harwin Gecko-SL family, designed for high performance in miniature packages. The series utilizes a 1.25 mm pin spacing to achieve substantial space savings over larger connectors like Micro-D. It is engineered for durability in harsh conditions, supporting rigorous industrial and electronic product design standards.

Replacement Considerations

The related model G125-MH11205M4R shares identical electrical and mechanical specifications but differs in reel packaging quantity. Verify compatibility if substituting based on supply chain availability rather than technical differences.

FAQ

What type of locking mechanism does the G125-MH12005M4R use?

It utilizes a jackscrew board mount locking system to secure the mating connector.

Is the connector shrouded?

Yes, the Gecko-SL series features a shrouded design to guide mating pins and prevent misalignment.
