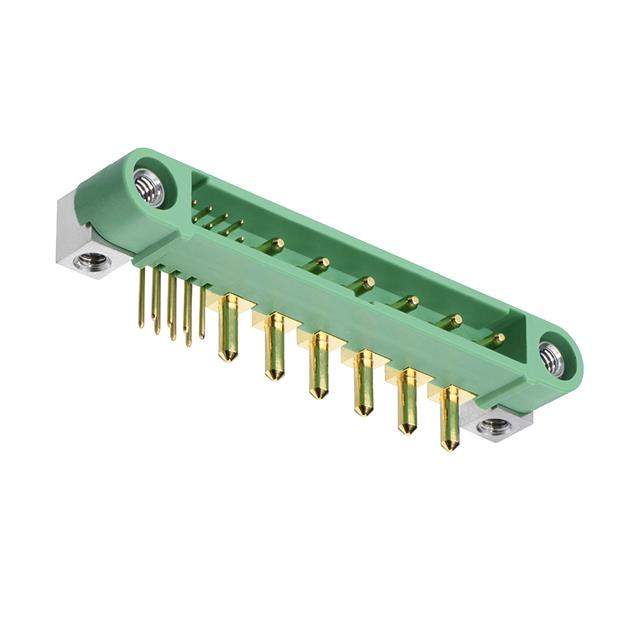

G125-MH124M4-02AD000P

$70.53

Description：HDR MALE R/A 2PWR + 24SIGNAL
Series：Gecko MT
Mfr：Harwin Inc.
Package：Strip

SKU:11803d2b616e Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：HDR MALE R/A 2PWR + 24SIGNAL
Series：Gecko MT
Mfr：Harwin Inc.
Package：Strip
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：26 (24 + 2 Power)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Screw Lock
Contact Length - Mating：-
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：-
Insulation Height：0.208" (5.30mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Beryllium Copper, Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T
Features：Mating Flange, Mounting Flange, Polarizing Key
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A, 10A
Voltage Rating：-

Download product information

G125-MH124M4-02AD000P

Overview

The Harwin G125-MH124M4-02AD000P is a Gecko-SL series header and wire housing component designed for through-hole mounting. It features a dual in-line configuration with 10 positions arranged in two rows. The connector utilizes a 1.25 mm pitch and includes a 1.25 mm row spacing to support compact circuit board layouts. Male pin contacts are gold-plated phosphor bronze, rated for 2 A current at temperatures ranging from -65 C to +150 C. The green polyamide housing provides UL 94 V-0 flammability classification and 1 GOhm insulation resistance. Right-angle installation is facilitated by 3.3 mm solder pins, secured via a jackscrew locking mechanism.
