G125-MH12605L5R

Overview

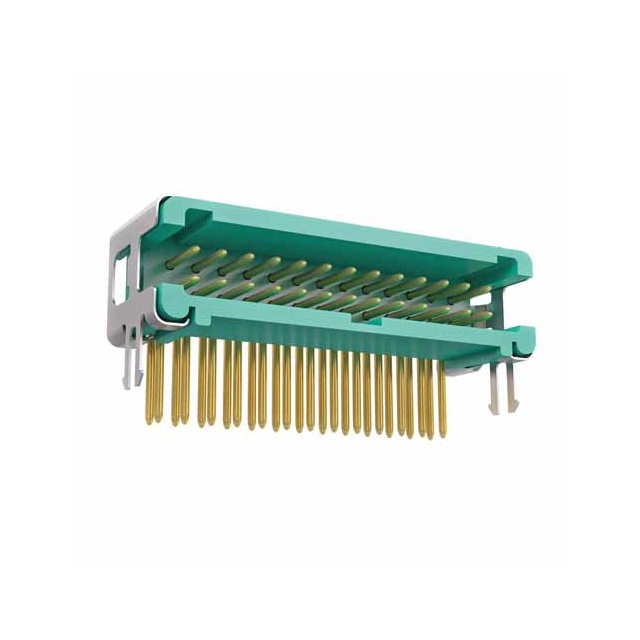

The G125-MH12605L5R is a male header from the Harwin Gecko-Latch series, designed for wire-to-board connections. It features a 1.25 mm pitch and a 2x13 position configuration (26 total contacts). The component utilizes a right-angle through-hole mounting style with solder pin termination. Constructed with phosphor bronze contacts gold-plated for conductivity, it operates within a temperature range of -65°C to +150°C and supports a current rating of 2 A.

Feature Summary

• Integrates a latch lock mechanism for secure mating retention
• Features shrouded housing design to ensure correct alignment during assembly
• Supports right-angle installation for compact board layout optimization

Applications

• Wire-to-board interconnects in industrial control systems
• Power distribution modules requiring secure mechanical locking
• Embedded electronics assemblies needing high-density routing

Procurement Notes

Verify the specific suffix L5R against official datasheets to confirm the exact contact length and housing variant. Ensure compatibility with mating cables and PCB footprint dimensions before procurement. Cross-reference RoHS compliance status directly with the manufacturer's latest documentation to meet regulatory requirements.

Selection Notes

Select this part when a right-angle, latched connection is required for 26-position applications. Compare against non-latched variants if vibration resistance is critical. Verify that the 1.25 mm pitch aligns with existing board space constraints and mating connector specifications.

Part Context

This component belongs to the Harwin Gecko-Latch family, which emphasizes secure mechanical retention in compact form factors. The series offers various pin lengths and row configurations to accommodate diverse PCB thicknesses and cable management needs while maintaining consistent electrical performance standards.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
