G125-MH13405L3P

Overview

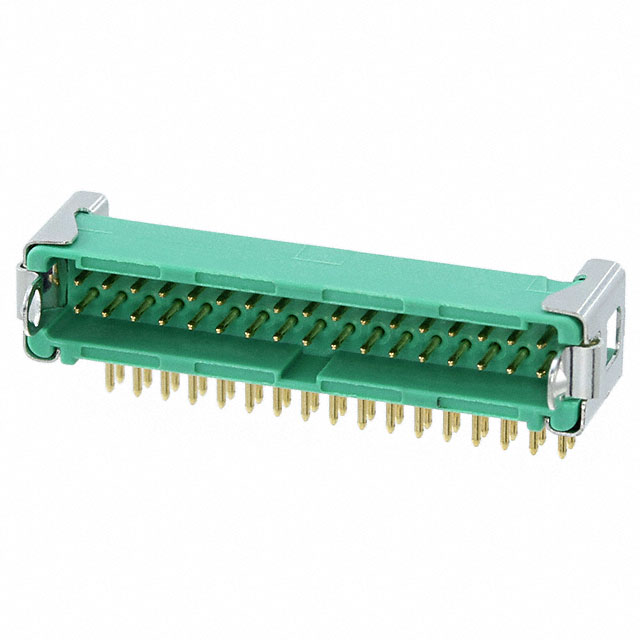

The G125-MH13405L3P is a male header connector from the Harwin Gecko-Latch series. It features a 1.25 mm pitch and a 2-row configuration with 34 positions. Designed for through-hole mounting, it utilizes solder pin termination and offers a right-angle installation style. The contacts are gold-plated phosphor bronze pins rated for 2 A current. The housing is constructed from green polyamide (PA) plastic, providing UL 94 V-0 flammability resistance. Operating temperatures range from -65 °C to +150 °C.

Feature Summary

• Jackscrew locking mechanism ensures secure mating stability
• Right-angle through-hole design facilitates dense PCB layouts
• Gold-plated phosphor bronze contacts ensure reliable signal transmission

Applications

• Industrial control systems requiring high-density interconnects
• Automotive electronics modules
• Telecommunications equipment backplanes

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official Harwin documentation. Confirm that the specific suffix matches the required orientation and packaging format. Ensure compliance with relevant environmental directives such as RoHS before integration into final assemblies.

Selection Notes

Select this component when a right-angle male header with jackscrew retention is required. The 1.25 mm pitch allows for compact designs compared to standard 2.54 mm connectors. Verify that the PCB footprint accommodates the specific through-hole pin dimensions and right-angle profile.

Part Context

This part belongs to the Gecko-Latch family, characterized by its robust mechanical locking system. The series supports various row counts and pitches, offering flexibility for different board space constraints. The G125-MH13405L3P specifically addresses applications needing horizontal-to-vertical transitions with secure locking capabilities.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
