Product Detailed Parameters
- Description：CONN HEADER R/A 34POS 1.25MM
- Series：Gecko
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：34
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.219" (5.56mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：-
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Board Lock
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：250V
Download product information
Overview

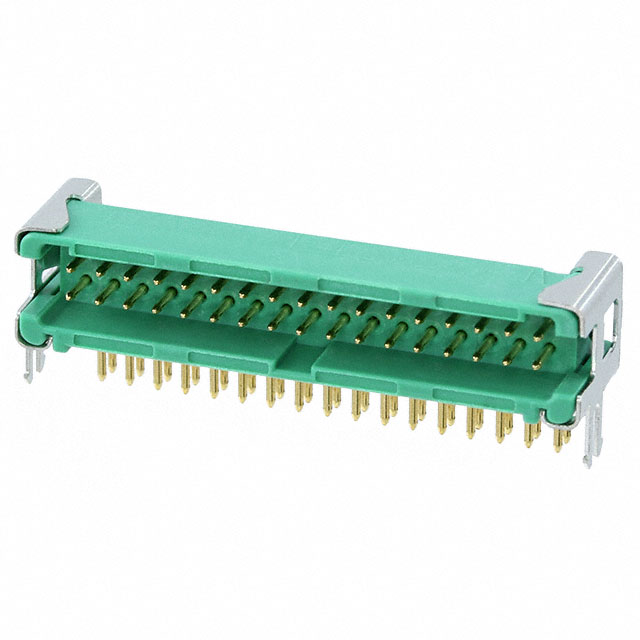

The G125-MH13405L5P is a Gecko-Latch male header connector manufactured by Harwin. It features a 1.25 mm pitch and a 2x17 position layout (34 pins total). Designed for surface mount technology, it utilizes right-angle mounting with solder tail termination. The contacts are gold-plated phosphor bronze housed in polyamide. This component supports vertical mating heights of 3.3 mm and includes PCB hold-down locking mechanisms.
Feature Summary
- Gecko-Latch mechanical system provides secure PCB hold-down locking
- Right-angle SMT design facilitates compact board integration
- Gold-plated contacts ensure reliable signal transmission
Applications
- High-density electronic assemblies requiring robust mechanical retention
- Industrial control systems utilizing surface mount headers
- Consumer electronics with space-constrained vertical interconnects
Procurement Notes
Verify the specific suffix 'L5P' against official Harwin documentation to confirm tape-and-reel packaging and right-angle orientation. Ensure compatibility with mating sockets in the G125 series. Confirm RoHS compliance status through current datasheets before procurement.
Selection Notes
Select this part for applications requiring right-angle surface mount connections with integrated PCB locking. The 1.25 mm pitch suits high-density layouts. Verify that the 3.3 mm mating height aligns with system requirements. Consider the Gecko-Latch feature for enhanced mechanical stability during operation.
Part Context
This component belongs to the Harwin G125 Gecko-Latch series, designed for power-to-board and signal interconnects. The series emphasizes secure mechanical retention alongside electrical performance. The G125-MH13405L5P specifically addresses needs for right-angle, high-pin-count surface mount solutions.
Replacement Considerations
Consult Harwin's official cross-reference guides for verified substitutes. Generic equivalents may lack the Gecko-Latch locking mechanism or precise 1.25 mm pitch tolerances required for proper fit.
