G125-MH13405L7P

Overview

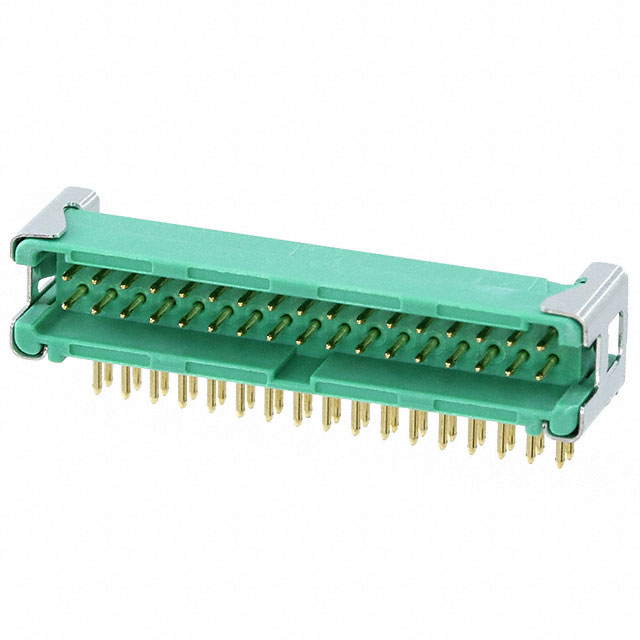

The G125-MH13405L7P is a male plug connector from Harwin’s Gecko Latch series, designed for horizontal double-row right-angle through-board termination. It features 34 contacts arranged in a 17+17 configuration with a 1.25 mm pitch. The housing material is polyamide (PA4T), glass-filled and halogen-free, while contacts are phosphor bronze. This component provides a low-profile interconnect solution suitable for stacking applications.

Feature Summary

• Horizontal double-row right-angle geometry for space-constrained board stacking
• Through-board termination with surface mount hold-down areas
• Halogen-free polyamide insulation material

Applications

• Board-to-board interconnects
• Stacking configurations
• Low-profile electronic assemblies

Procurement Notes

Verify the specific datasheet version to confirm contact plating details and latching mechanism specifications. Ensure PCB design accommodates the 3.2mm termination height and hold-down area requirements. Cross-reference the ECCN classification EAR99 for export compliance needs.

Selection Notes

Select this part when a horizontal right-angle male connector is required for double-row applications. The Gecko Latch system offers secure retention via barbs. Consider the 1.25 mm pitch and 34-contact count against available board space and mating female housing options.

Part Context

This component belongs to the G125 Gecko series, which focuses on SWaP-C optimization. The series includes various male and female housings with barrel crimp contacts. The G125-MH13405L7P specifically addresses the need for robust, low-profile connections in dense electronic environments.

Replacement Considerations

Compatible substitutes include other G125 series male plugs with matching 34-pin counts and right-angle orientations, such as G125-MH13405L1P, provided the latching mechanism and PCB thickness compatibility align with the design.
