G125-MH13405M3R

Description：CONN HDR 1.25MM R/A 34POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:b19c1a2895c5 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HDR 1.25MM R/A 34POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：34
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Screw Lock
Contact Length - Mating：-
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：-
Insulation Height：0.209" (5.30mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Jackscrews, Mating Flange, Pick and Place, Polarizing Key
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A
Voltage Rating：450V

Download product information

G125-MH13405M3R

Overview

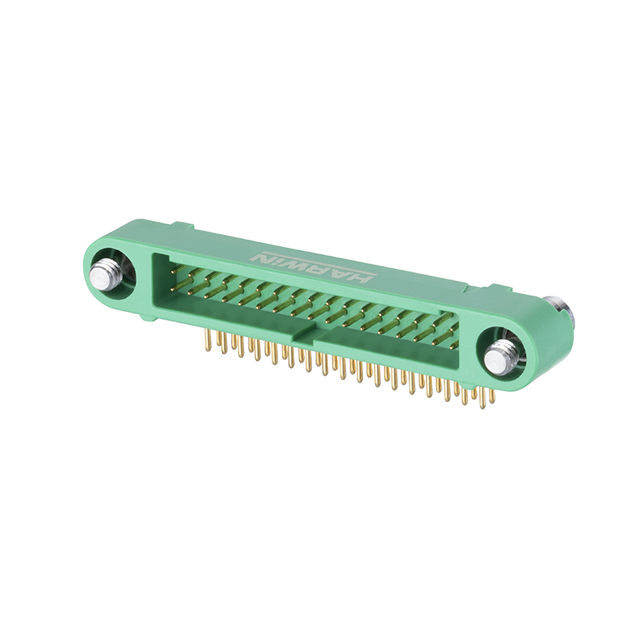

The Harwin G125-MH13405M3R is a Gecko-SL series header connector featuring 34 positions arranged in a dual inline configuration. It utilizes a 1.25 mm pitch and operates at right angles for through-hole mounting. The male contacts are constructed from phosphor bronze with gold plating, rated for 2 A current. The housing is made of green polyamide (PA) with UL 94 V-0 flammability rating. It supports an operating temperature range from -65 °C to +150 °C and employs a jackscrew locking mechanism.
