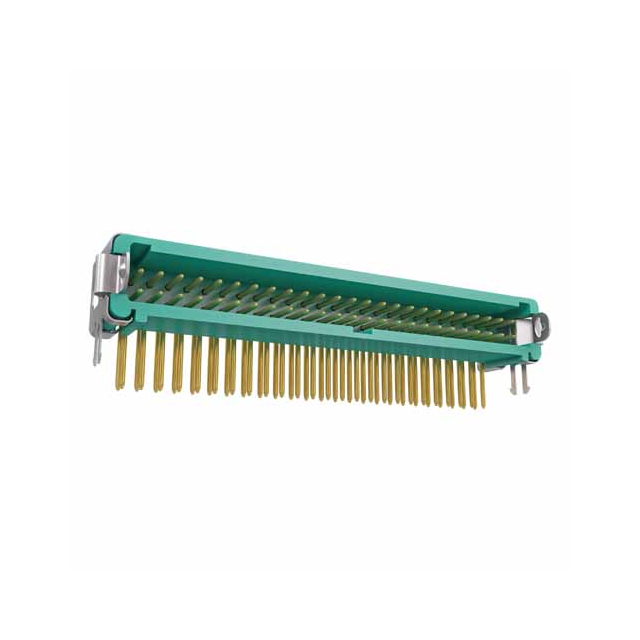

G125-MH15005L1R

Description：CONN HDR R/A 50POS
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:9e2dca662b92 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HDR R/A 50POS
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：50
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Latch Holder
Contact Length - Mating：-
Contact Length - Post：0.126" (3.20mm)
Overall Contact Length：-
Insulation Height：0.218" (5.55mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T
Features：Board Lock
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A
Voltage Rating：-

Download product information

G125-MH15005L1R

Overview

The G125-MH15005L1R is a male header connector from the Harwin Gecko-Latch series, designed for board-to-board interconnects. It features a 1.25 mm pitch with 50 positions arranged in a dual-row configuration. The unit utilizes gold-plated phosphor bronze contacts and a green polyamide (PA4T) housing. Rated for 2 A current and 250 V/450 V voltage, it operates within a temperature range of -65 °C to +150 °C. The connector employs a horizontal surface-mount installation style with solder pin termination and includes an integrated latching mechanism.
