G125-MH15005L5P

Overview

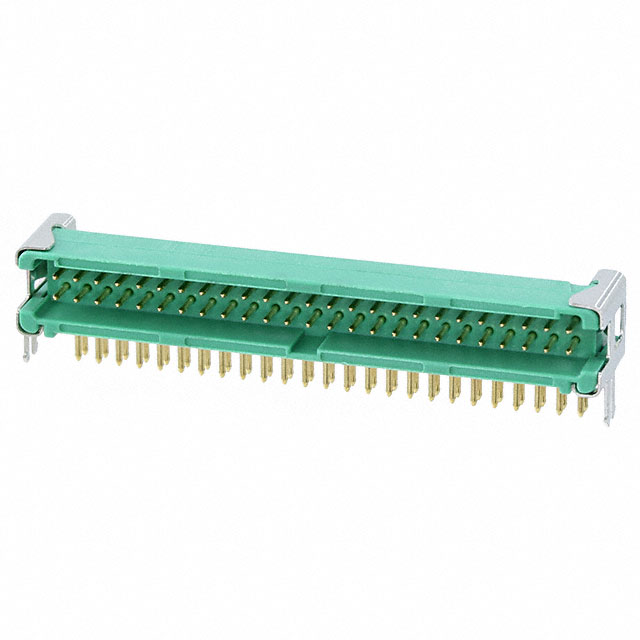

The Harwin G125-MH15005L5P is a 50-position, double-row male header from the Gecko-Latch series. It features a 1.25 mm pitch and right-angle horizontal orientation for surface-mount PCB installation. The connector utilizes gold-plated phosphor bronze contacts with a 3.3 mm tail length, rated for 2 A current and 1 GOhm insulation resistance. Operating temperatures range from -65°C to +150°C, housed in green polyamide (PA) casing.

Feature Summary

• Gecko-Latch mechanical locking system ensures secure mating retention
• Right-angle horizontal design facilitates compact board integration
• Gold-plated contacts provide reliable signal transmission

Applications

• Aviation electronic systems
• Spacecraft instrumentation
• Defense communication equipment
• Motorsport data acquisition modules

Procurement Notes

Verify the specific suffix 'L5P' confirms the 50-position count and tape-and-reel packaging format. Ensure compatibility with the corresponding female housing within the same Gecko-Latch series. Confirm RoHS compliance status through official manufacturer documentation prior to procurement.

Selection Notes

Select this component when high-density interconnects require robust mechanical latching in constrained spaces. The right-angle configuration suits applications needing perpendicular board connections. Verify that the 1.25 mm pitch aligns with existing PCB footprint designs and mating connector requirements.

Part Context

This part belongs to the Harwin Gecko-Latch family, designed for high-reliability environments where vibration resistance is critical. The series supports various position counts and orientations, offering modular solutions for aerospace and industrial sectors requiring certified performance standards.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference only with other Harwin G125 series variants sharing identical pitch, row count, and locking mechanism specifications.
