G125-MH15005L7R

Overview

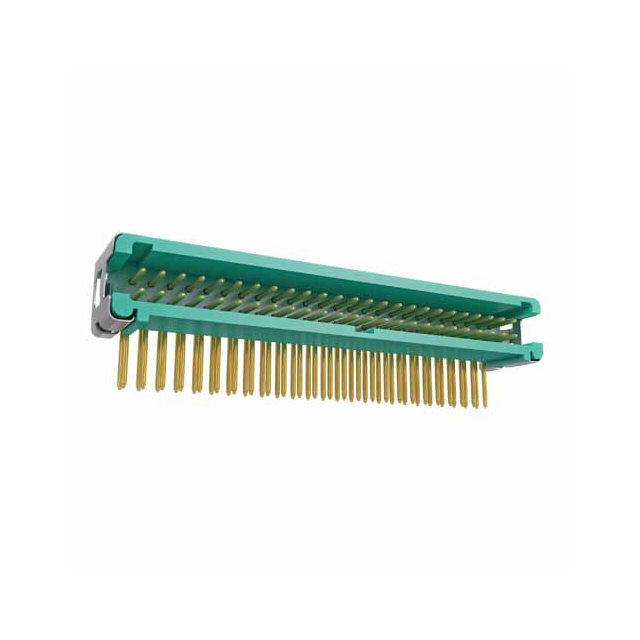

The G125-MH15005L7R is a shrouded header manufactured by Harwin Inc., belonging to the Gecko G125 series. It features a 1.25 mm pitch and a 2x10 position configuration, totaling 20 contacts. The connector utilizes through-hole solder pin termination with a right-angle mounting style. Designed for high-reliability applications, it operates within a temperature range of -65°C to +150°C and supports a current rating of 2 A per contact. The component is currently listed as obsolete.

Feature Summary

• Patented four-finger copper alloy contact design ensures reliable performance under extreme vibration conditions.
• Shrouded housing structure provides polarized keying and secure mating alignment.
• High-temperature polyamide insulation material supports operation in demanding thermal environments.

Applications

• Board-to-board interconnections requiring high reliability
• Power distribution in compact electronic assemblies
• Harsh environment industrial equipment

Procurement Notes

This component is officially designated as obsolete by the manufacturer. Verify end-of-life status before finalizing designs. No new production units are available; only existing stock or secondary market sources may be accessible. Confirm compatibility with mating connectors in the Gecko G125 family prior to procurement attempts.

Selection Notes

Select this part for applications necessitating a 1.25 mm pitch right-angle through-hole header with 20 positions. Ensure the design accommodates the specific mechanical dimensions of the Gecko G125 series. Consider alternative active parts if long-term supply continuity is required, as this specific suffix indicates an obsolete lifecycle stage.

Part Context

Part of the Harwin Gecko G125 family, known for space-saving density and high-reliability performance. The series offers various configurations including screw-lock and latch options. This specific model represents a standard shrouded header variant within the broader ecosystem of high-density interconnect solutions.

Replacement Considerations

No public confirmed substitute part numbers are documented. As the item is obsolete, engineers must evaluate compatible active headers from the same G125 series or adjacent families with matching pitch and contact count.
