Product Detailed Parameters
- Description：CONN HDR 1.25MM R/A 50POS
- Series：Gecko SL
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：50
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.209" (5.30mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

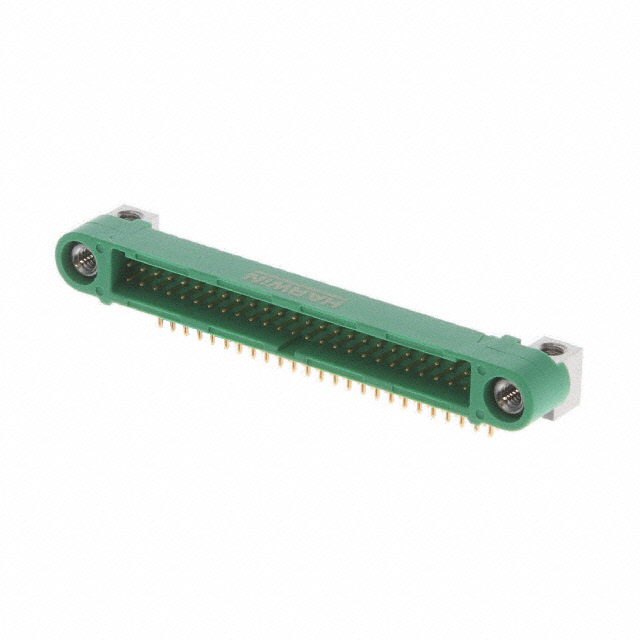

The G125-MH15005M4P is a male plug header connector from the Harwin Gecko-SL series. It features a 1.25 mm (0.049 inch) pitch and a 25+25 position configuration across two rows. The component utilizes a right-angle through-hole mounting style with solder pin terminals. Key mechanical features include Screw-Lok board mount locking and DIL form factor. The housing is constructed from polyamide material rated UL 94 V-0, with gold-plated phosphor bronze contacts ensuring reliable electrical performance.
Feature Summary
- Screw-Lok threaded locking mechanism for secure board attachment
- Right-angle through-hole termination for PCB integration
- Gold-plated phosphor bronze contacts for conductivity
- Polyamide housing with UL 94 V-0 flammability rating
Applications
- Industrial control system interconnects
- Automotive electronics modules
- Telecommunications equipment backplanes
- Medical device signal routing
Procurement Notes
Verify the specific datasheet version to confirm RoHS compliance status and REACH SVHC declarations prior to procurement. Ensure that the required screw-locking hardware is included or sourced separately as per assembly requirements. Confirm that the right-angle orientation matches the PCB layout constraints. Validate that the through-hole soldering process parameters are compatible with the terminal design.
Selection Notes
Select this part when a secure, vibration-resistant connection is required in space-constrained applications. The right-angle profile facilitates dense PCB layouts while maintaining serviceability via the screw-lock feature. Consider the 1.25 mm pitch for balancing contact density and handling ease. Ensure mating connectors match the female socket specifications of the Gecko-SL family.
Part Context
This component belongs to the Harwin Gecko-SL series, designed for high-reliability applications requiring robust mechanical retention. The series emphasizes secure connections through threaded locking mechanisms rather than standard latches. It serves as a male header counterpart to various female sockets within the same ecosystem, supporting diverse industrial and automotive connectivity needs.
Replacement Considerations
Compatible substitutes include other Gecko-SL male headers with identical 1.25 mm pitch, 50-position count, right-angle orientation, and through-hole termination. Verify that alternative parts maintain the Screw-Lok locking feature and similar housing material ratings to ensure mechanical and thermal compatibility.
