G125-MH20605L2R

Description：CONN HDR R/A 6POS
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:99199b46784f Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HDR R/A 6POS
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Latch Lock
Contact Length - Mating：-
Contact Length - Post：0.189" (4.80mm)
Overall Contact Length：-
Insulation Height：0.218" (5.55mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：-
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A
Voltage Rating：450VAC/DC

Download product information

G125-MH20605L2R

Overview

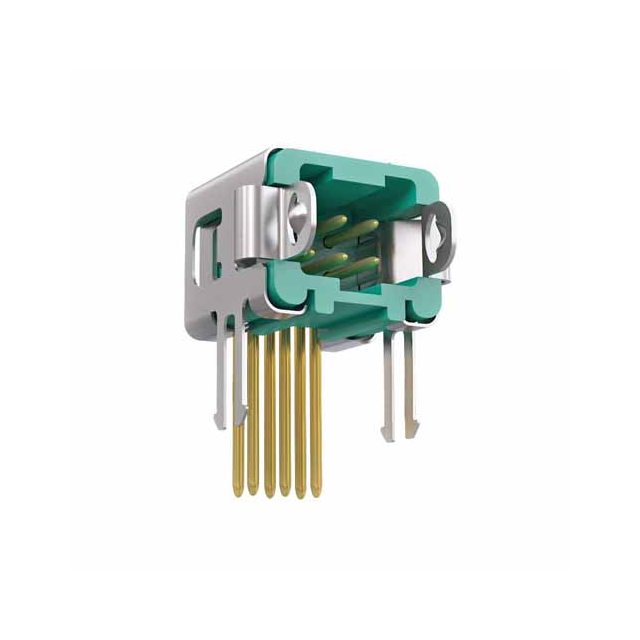

The Harwin G125-MH20605L2R is a wire housing component from the GECKO series, designed for board-to-wire connections. It features a 2x03 position configuration with a 4.5mm and 2.4mm dimension specification. The product utilizes a male pin interface type within its housing structure. Packaged in reels, it supports automated assembly processes. The unit weight is recorded at 456 mg, indicating a lightweight design suitable for compact electronic applications requiring reliable signal or power transmission.

Feature Summary

Features a dual-row housing configuration for multi-circuit connectivity
Incorporates a male pin interface for secure mating with corresponding sockets
Designed for automated pick-and-place manufacturing workflows

Applications

Board-to-wire interconnections in industrial control systems
Signal transmission modules in consumer electronics assemblies
Power distribution interfaces in compact automotive subsystems

Procurement Notes

Verify the specific reel quantity requirements against production needs, as factory packaging quantities are specified. Confirm RoHS compliance status through official documentation prior to integration. Ensure storage conditions maintain integrity of the polyamide housing material. Cross-reference the MHRZ designation with mating connector specifications to guarantee mechanical compatibility and electrical performance standards.

Selection Notes

Select this housing when a 2x03 position layout is required for vertical or horizontal mounting configurations. Consider the 1.25mm pitch family characteristics for space-constrained designs. Evaluate the green polyamide insulation for environmental resistance. Match the male contact type with appropriate socket counterparts to ensure proper engagement force and retention.

Part Context

This component belongs to the Harwin GECKO G125 series, known for high-density interconnect solutions. The series offers various pitch options and row configurations. As a header and wire housing product, it complements the broader range of power connectors and headers available from Harwin, providing versatile options for modern electronic packaging requirements.
