G125-MH21005L3P

$6.03

Description：CONN HDR R/A 10POS
Series：Gecko
Mfr：Harwin Inc.
Package：Strip

SKU:71b7700b0554 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HDR R/A 10POS
Series：Gecko
Mfr：Harwin Inc.
Package：Strip
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Latch Lock
Contact Length - Mating：-
Contact Length - Post：0.189" (4.80mm)
Overall Contact Length：-
Insulation Height：0.218" (5.55mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：-
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A
Voltage Rating：450VAC/DC

Download product information

G125-MH21005L3P

Overview

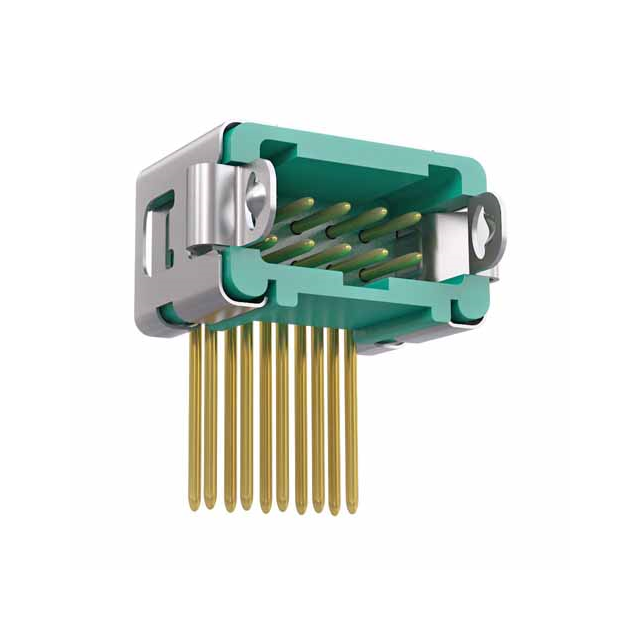

The Harwin G125-MH21005L3P is a Gecko-Latch series header connector featuring 10 positions in a dual-row configuration. It utilizes a 1.25 mm pitch and operates with male pin contacts for plug applications. The component is designed for right-angle through-hole mounting with solder pin termination. Constructed from polyamide (PA) housing, it supports a maximum operating temperature of +150°C and a minimum of -65°C. The unit weighs approximately 829 mg.

Feature Summary

Features a jack-screw locking mechanism to secure mating connections.
Designed for high-density board-to-board interconnections.
Utilizes gold-plated phosphor bronze contacts for conductivity.

Applications

Industrial control systems
Telecommunications equipment
Automotive electronics

Procurement Notes

Verify the specific suffix L3P against official datasheets to confirm right-angle orientation and reel packaging details. Ensure compatibility with mating sockets within the Gecko-Latch family. Confirm RoHS compliance status via current manufacturer documentation before integration.

Selection Notes

Select this part for applications requiring compact right-angle interconnects with secure mechanical latching. The 1.25 mm pitch allows for dense circuit layouts. Verify that the through-hole footprint matches the PCB design requirements for the specified contact length and row spacing.

Part Context

This component belongs to the Harwin Gecko-Latch family, known for robust mechanical retention. It serves as a male header variant within the broader G125 series, which includes various pitch and row configurations. The series emphasizes reliability in harsh environments through its screw-lock design.
