G125-MH22005L2P

Overview

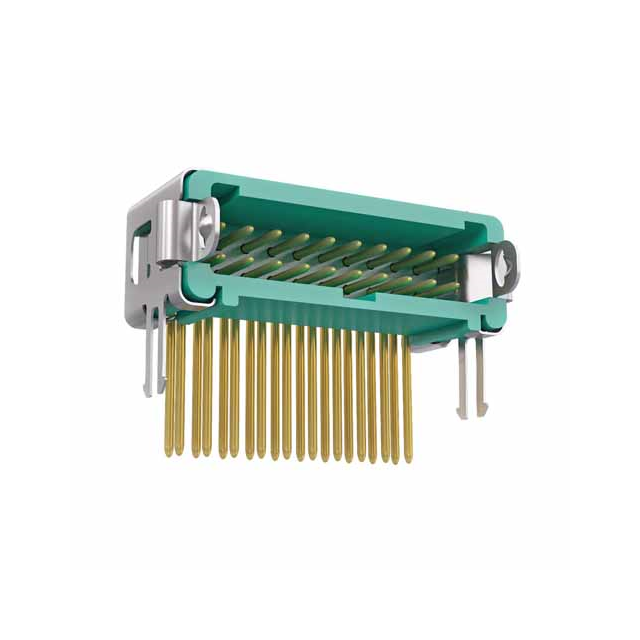

The G125-MH22005L2P is a shrouded header from the Gecko-Latch series by Harwin. It features a 1.25 mm pitch and a 2x10 position configuration (2 rows). Designed for right-angle through-hole mounting, it utilizes gold-plated phosphor bronze pins with a 4.8 mm tail length. The housing is green polyamide (PA) rated UL 94 V-0. Electrical ratings include 2 A current and operation between -65°C and +150°C.

Feature Summary

• Right-angle through-hole mounting for space-efficient PCB integration
• Shrouded design ensures correct mating alignment
• Gold-plated contacts provide reliable conductivity

Applications

• Industrial control systems
• Consumer electronics assemblies
• Automotive electronic modules

Procurement Notes

Verify the specific pin count matches your design requirements, as datasheets may list variations such as 2x5 or 2x10 positions for similar suffixes. Confirm RoHS compliance status directly with the manufacturer's latest documentation before finalizing procurement orders to ensure regulatory adherence.

Selection Notes

Select this component when right-angle board-to-board connectivity is required within tight vertical spaces. The 1.25 mm pitch allows for high-density layouts. Ensure the mating wire housing supports the Gecko-Latch locking mechanism to maintain secure connections during vibration.

Part Context

This part belongs to Harwin’s Gecko-Latch family, known for robust latching mechanisms. It complements female sockets in the same series, providing a complete interconnect solution for power and signal transmission in compact electronic enclosures.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
