G125-MH22605L3R

Overview

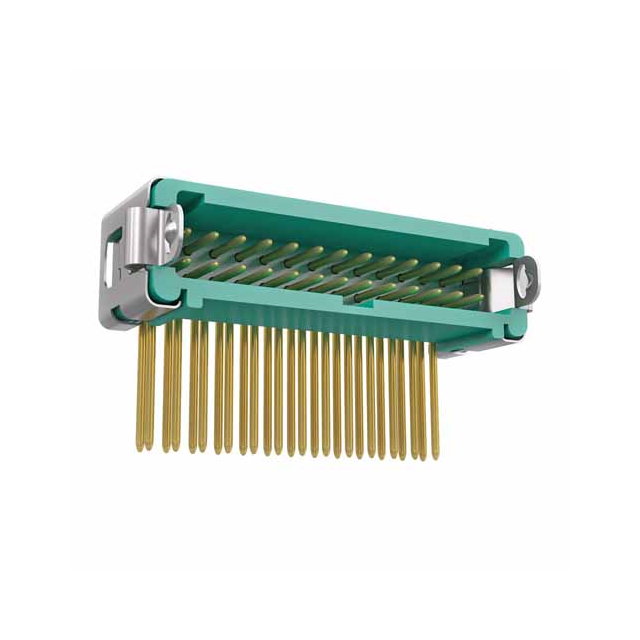

The Harwin G125-MH22605L3R is a shrouded header from the Gecko-Latch series, designed for wire-to-board applications. It features a 1.25 mm pitch with 26 positions arranged in two rows. The connector utilizes phosphor bronze contacts with gold plating and operates within a temperature range of -65°C to +150°C. Rated at 2 A and 450 VAC/DC, it employs a latch lock mechanism and UL 94 V-0 green nylon insulation.

Feature Summary

• Integrated latch lock mechanism for secure mating retention
• Shrouded housing design providing environmental protection
• Gold-plated phosphor bronze contacts ensuring reliable conductivity

Applications

• Wire-to-board interconnections
• General electronic circuit assembly
• Industrial control modules

Procurement Notes

Verify the specific suffix 'L3R' against the official datasheet to confirm the exact reel packaging configuration and contact length specifications. Ensure compatibility with mating cables and verify RoHS compliance status through current manufacturer documentation before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, high-density connection is required with positive locking security. The 1.25 mm pitch allows for compact board layouts, while the latch feature mitigates vibration-induced disconnection risks compared to standard headers.

Part Context

This part belongs to the Harwin Gecko-Latch family, which emphasizes secure connections in space-constrained environments. The series offers various pin counts and mounting styles, all sharing common electrical ratings and mechanical locking principles for system consistency.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching pitch, row count, locking mechanism type, and current rating with alternative manufacturers.
