Product Detailed Parameters
- Description：CONN HEADER SMD 6POS 1.25MM
- Series：Gecko
- Mfr：Harwin Inc.
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.193" (4.90mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：-
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Pick and Place, Solder Retention
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A per Contact
- Voltage Rating：-
Download product information
Overview

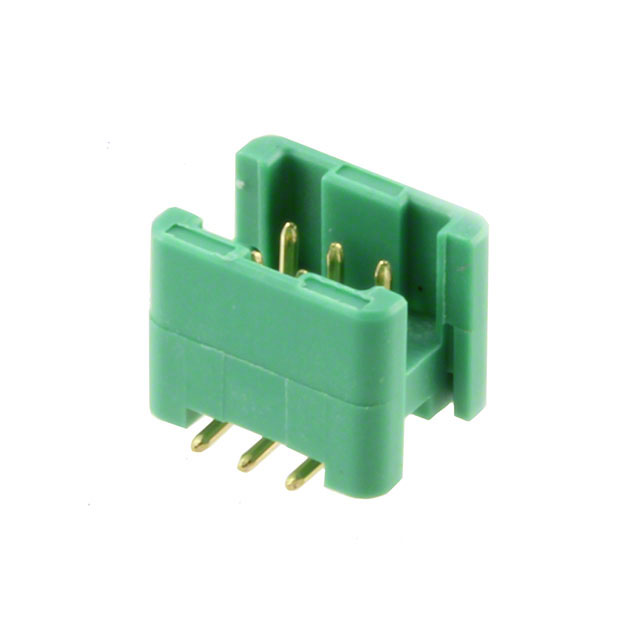

The G125-MS10605L0P is a male pin header connector from the Harwin Gecko SL series, designed for surface mount technology. It features a 1.25 mm pitch and a 2x3 position configuration (6 positions). The connector utilizes phosphor bronze contacts with gold plating and a green polyamide housing. Rated for 2 A current and 250 V voltage, it operates within a temperature range of -65°C to +150°C. The component is supplied in tape and reel packaging.
Feature Summary
- Surface mount vertical design for automated PCB assembly
- Gecko SL latching mechanism for secure mating
- Gold-plated phosphor bronze contacts for reliable conductivity
Applications
- Power distribution on printed circuit boards
- Signal interconnection in compact electronic modules
- Board-to-board connectivity in industrial equipment
Procurement Notes
Verify the specific suffix 'L0P' against the manufacturer's official datasheet to confirm the tape and reel packaging format and orientation. Ensure compatibility with standard SMT reflow profiles and check for RoHS compliance documentation prior to integration into production lines.
Selection Notes
Select this component when a low-profile, surface-mount male header is required for 1.25 mm pitch applications. Consider the 2-row layout and vertical orientation for space-constrained designs. Validate that the 2 A current rating and 250 V insulation requirements align with the system's electrical specifications.
Part Context
This part belongs to the Harwin G125 Gecko SL family, which offers micro-miniature connectors with a 1.25 mm pitch. The series provides various mounting styles and contact configurations for signal and power applications, emphasizing high density and reliability in small form factors.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Cross-reference with other Harwin G125 variants or competitors offering 1.25 mm pitch SMT headers only after verifying mechanical and electrical compatibility.
