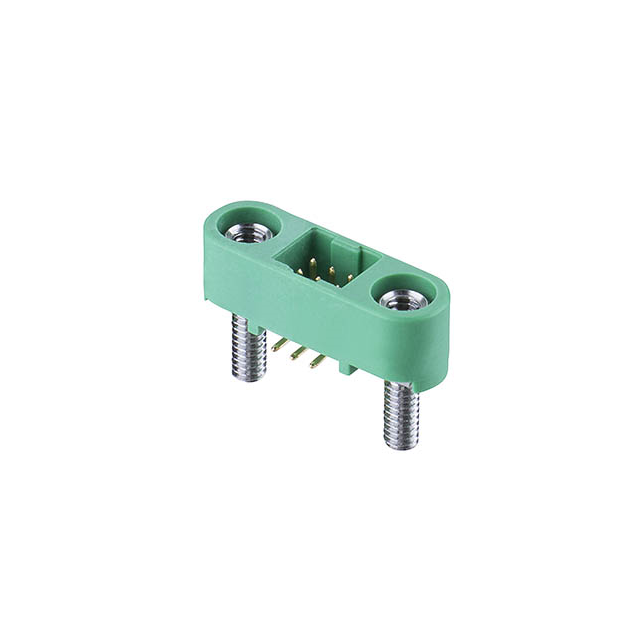

G125-MS10605M2R

Description：CONN HDR VERT 6POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:02fb8b57c539 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HDR VERT 6POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.193" (4.90mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T
Features：Pick and Place
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A
Voltage Rating：-

Download product information

G125-MS10605M2R

Overview

The G125-MS10605M2R is a Gecko-SL series male vertical surface-mount connector manufactured by Harwin. It features a 1.25 mm pitch and a 2x3 position configuration (6 positions total). The component utilizes phosphor bronze contacts with gold plating, rated for 2 A current and 250 V/450 V voltage. Designed for SMD/SMT installation with solder termination, it operates within a temperature range of -65°C to +150°C. The housing is constructed from green polyamide (PA) material.

Feature Summary

Vertical surface-mount design for compact board integration
High-reliability Gecko-SL series construction
Gold-plated phosphor bronze contacts for stable conductivity

Applications

Power to the Board interconnects
High-reliability electronic assemblies
Compact consumer electronics

Procurement Notes

This component is officially listed as obsolete or end-of-life by the manufacturer. Verification of availability through authorized distributors is essential, as stock may be limited or unavailable. Ensure compatibility with existing designs before considering alternative sourcing strategies due to the discontinued status.

Selection Notes

Select this part for applications requiring a 1.25 mm pitch vertical SMT header with 6 positions. Verify that the mating connector matches the male pin type and that the PCB footprint aligns with the specific Gecko-SL SMT land pattern requirements.

Part Context

Part of the Harwin Gecko-SL family, designed for high-reliability applications in space-constrained environments. The series offers robust mechanical and electrical performance suitable for demanding industrial and commercial sectors.
