Product Detailed Parameters
- Description：CONN HEADER SMD 6POS 1.25MM
- Series：Gecko SL Reverse Fix
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.193" (4.90mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Mating Flange, Mounting Flange, Pick and Place
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

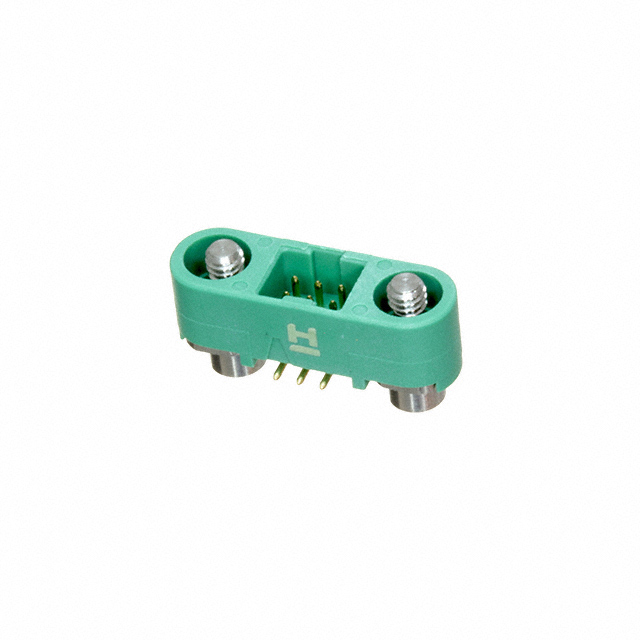

The G125-MS10605M3P is a surface mount pin header from the Harwin Gecko-SL series. It features a 1.25 mm pitch with a 2x3 contact layout, providing six positions. The connector utilizes gold-plated phosphor bronze contacts and a polyamide housing. Designed for vertical mounting with reverse fix technology, it supports through-hole solder termination. This component is rated for 2 A current and operates within a temperature range of -65 °C to +150 °C.
Feature Summary
- Surface mount design with reverse fix mechanism for secure PCB attachment
- Gold-plated phosphor bronze contacts ensuring reliable signal transmission
- Polyamide housing material offering thermal stability up to 150 °C
Applications
- Power distribution on printed circuit boards
- Signal interconnection in micro-miniature systems
- High-density electronic assemblies requiring vertical mounting
Procurement Notes
Verify the specific ordering suffix against the official Harwin datasheet to confirm exact mechanical and electrical specifications. Ensure compatibility with existing Gecko-SL mating connectors. Confirm RoHS compliance status prior to procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status.
Selection Notes
Select this component for applications requiring surface mount connectivity with high thermal resistance. The 1.25 mm pitch allows for dense board layouts. Verify that the reverse fix feature aligns with assembly requirements. Ensure the 2 A current rating meets circuit demands. Confirm the polyamide housing is suitable for the operating environment.
Part Context
This part belongs to the Harwin Gecko-SL family, designed for space-constrained environments. The series offers various configurations including wire-to-board and power-to-board options. The G125-MS10605M3P specifically addresses surface mount needs within this ecosystem, maintaining consistency with the series' dimensional standards and performance characteristics.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult Harwin engineering for potential alternatives if this specific configuration is unavailable.
