G125-MS11005L2P

Overview

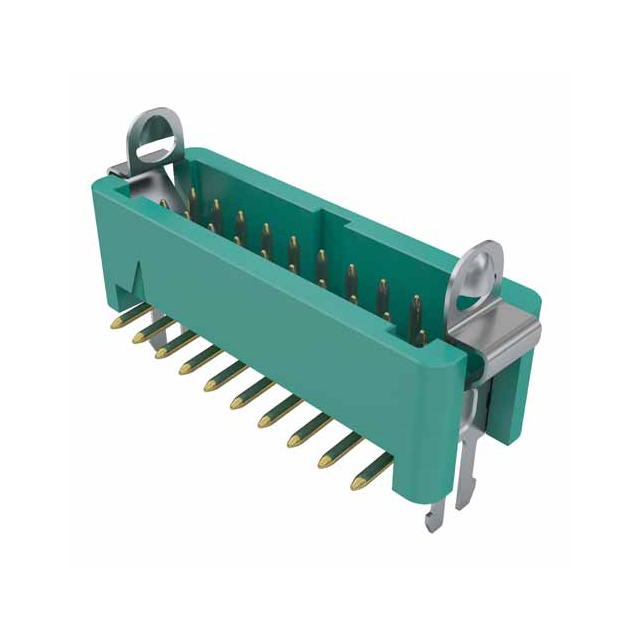

The G125-MS11005L2P is a Gecko-Latch series header manufactured by Harwin. It features a 1.25 mm pitch with 10 positions arranged in a dual-row configuration. Designed for surface mount technology, it utilizes right-angle solder pin termination. The connector employs male pin contacts plated with gold over phosphor bronze. The housing is constructed from green polyamide material rated UL 94 V-0. It operates within a temperature range of -65°C to +150°C and supports a current rating of 2 A.

Feature Summary

• Surface mount right-angle design for compact board integration
• Gecko-Latch shrouded structure for secure mating retention
• Gold-plated phosphor bronze contacts for reliable conductivity
• Polyamide housing with UL 94 V-0 flammability rating

Applications

• Power distribution modules requiring surface mount headers
• Compact electronic assemblies utilizing Gecko-Latch mating systems
• Industrial control boards with high-density interconnect needs
• Automotive electronics modules demanding thermal stability

Procurement Notes

Verify the specific suffix L2P against official Harwin documentation to confirm the exact reel quantity and tape specifications. Ensure the procurement channel provides valid RoHS compliance certificates. Confirm that the surface mount variant matches the required PCB footprint dimensions before finalizing orders.

Selection Notes

Select this component when a right-angle surface mount header is required for the Gecko-Latch ecosystem. The 1.25 mm pitch allows for dense routing while maintaining electrical isolation. Verify that the 2 A current rating meets the circuit requirements and that the operating temperature range aligns with the environmental conditions of the target application.

Part Context

This part belongs to the Harwin Gecko-Latch family, which emphasizes secure latching mechanisms for vibration-prone environments. The MS designation indicates a surface mount male header. It complements socket counterparts and cable assemblies within the same 1.25 mm pitch series to form complete interconnect solutions.

Replacement Considerations

Direct substitutes include other Harwin Gecko-Latch headers with identical 1.25 mm pitch, 10-position count, and surface mount right-angle termination. Cross-referencing mating sockets is essential to ensure mechanical compatibility.
