G125-MS11005M1P

$15.51

Description：CONN HEADER SMD 10POS 1.25MM
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip

SKU:546a91f52779 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 10POS 1.25MM
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Screw Lock
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.193" (4.90mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Mating Flange, Mounting Flange, Pick and Place
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A
Voltage Rating：450V

Download product information

G125-MS11005M1P

Overview

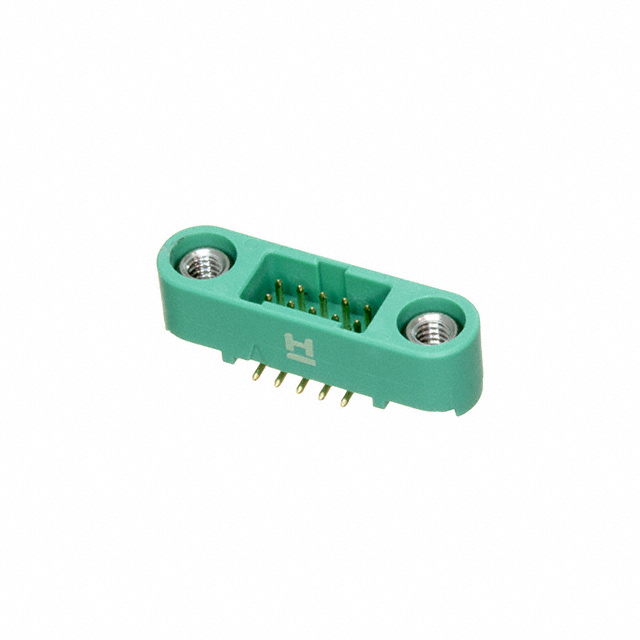

The G125-MS11005M1P is a Gecko-SL series header connector manufactured by Harwin. It features a 10-position, 2-row configuration with a 1.25 mm pitch. Designed for surface mount installation, it utilizes right-angle solder pin termination. The male contacts are gold-plated phosphor bronze, rated for 2 A current. The housing is constructed from green polyamide (PA) with UL 94 V-0 flammability rating. Operating temperature ranges from -65°C to +150°C.

Feature Summary

High-reliability design supporting 1000 mating cycles
Screw-Lok board mount mechanism for secure attachment
Gold-plated contacts for enhanced conductivity and corrosion resistance

Applications

Industrial control systems requiring high vibration resistance
Automotive electronics applications
Medical device interconnections

Procurement Notes

Verify the specific suffix 'M1P' against official Harwin documentation to confirm surface mount orientation and packaging type. Ensure compatibility with the corresponding female socket within the Gecko-SL family. Confirm RoHS compliance status through the manufacturer's latest declaration before procurement.

Selection Notes

Select this component when a low-profile, surface-mount male header is required for dense PCB layouts. The 1.25 mm pitch allows for compact spacing compared to standard 2.54 mm connectors. Consider the right-angle form factor for vertical mating interfaces in constrained enclosures.

Part Context

This part belongs to the Harwin Gecko-SL series, known for high reliability and durability. The series offers various configurations including through-hole and surface mount options. The G125-MS11005M1P specifically addresses needs for robust signal connections in demanding environments.

Replacement Considerations

Direct substitutes include other Harwin Gecko-SL headers with matching 1.25 mm pitch and 10-position count. Verify mechanical dimensions and electrical ratings before substituting with generic equivalents.
