Product Detailed Parameters

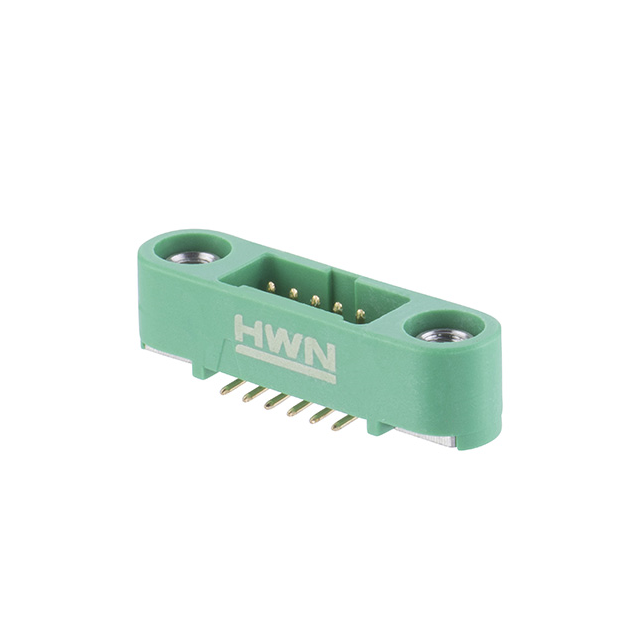

- Description：CONN HEADER SMD 12POS 1.25MM
- Series：Gecko SL
- Mfr：Harwin Inc.
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.193" (4.90mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Mating Flange, Pick and Place, Polarizing Key
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview
The Harwin G125-MS11205M1R is a Gecko-Latch series header connector designed for surface mount technology. It features a 1.25mm pitch with 12 positions arranged in a 2x6 configuration. The component utilizes gold-plated phosphor bronze contacts and a black polyamide insulation body rated UL94 V-0. Electrical ratings include 2A current capacity and 450VAC/DC voltage tolerance. Operating temperatures range from -65°C to +150°C, ensuring reliability across diverse industrial environments.
Feature Summary
- Integrated pin lock mechanism provides secure board retention
- Four-wall shielding design enhances environmental protection
- Vertical surface mount termination facilitates automated assembly
Applications
- Industrial control system interconnections
- Power distribution modules
- Automotive electronic assemblies
Procurement Notes
Verify the specific suffix 'M1R' confirms tape and reel packaging requirements against your manufacturing equipment specifications. Ensure compatibility with the Gecko-Latch mating system before integration. Cross-reference the datasheet for precise reflow soldering profiles to maintain contact integrity and prevent thermal damage during the assembly process.
Selection Notes
Select this variant when vertical mounting and high-density connections are required within constrained board spaces. The 1.25mm pitch offers a balance between signal density and spacing. Consider the four-wall shielding feature if electromagnetic interference mitigation is necessary for adjacent circuit traces or sensitive components.
Part Context
This component belongs to the Gecko-Latch family, characterized by robust mechanical locking and compact form factors. It serves as a male header solution within the broader G125 product line, designed specifically for power-to-board applications requiring reliable electrical connectivity in demanding operational conditions.
Replacement Considerations
Compatible substitutes include G125-MS11205L1P and G125-MS11205M1P. Verify that alternative part numbers match the exact 1.25mm pitch, 12-position count, and surface mount termination style to ensure physical and electrical interchangeability.
