G125-MS12605M1P

$21.83

Description：CONN HEADER SMD 26POS 1.25MM
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip

SKU:298baee5dec9 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 26POS 1.25MM
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：26
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Screw Lock
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.193" (4.90mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Mating Flange, Mounting Flange, Pick and Place
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A
Voltage Rating：450V

Download product information

G125-MS12605M1P

Overview

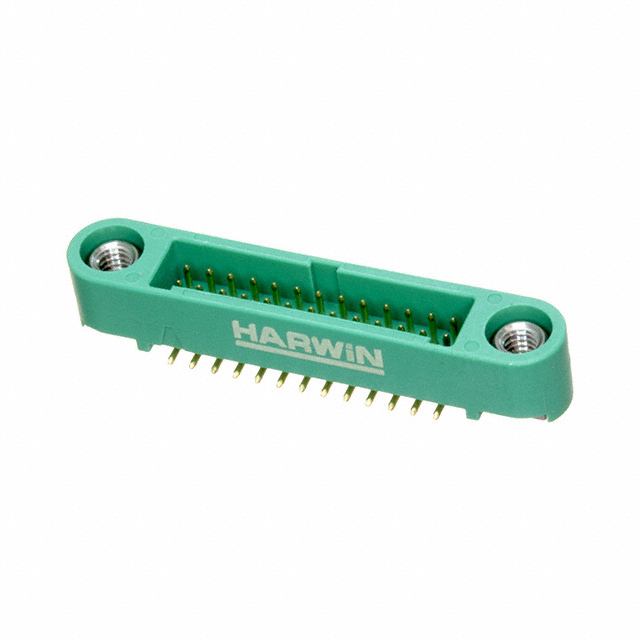

The Harwin G125-MS12605M1P is a Gecko-SL series male pin header featuring 26 positions arranged in a 2-row configuration. It utilizes a 1.25 mm pitch and is designed for surface mount (SMT) installation with reverse fix technology. The connector supports a current rating of 2 A and voltage ratings of 250 V or 450 V. Constructed with phosphor bronze contacts gold-plated for conductivity, the housing is green polyamide. It operates within a temperature range of -65 C to +150 C.

Feature Summary

Gecko-SL series design ensures secure mating and high reliability
Reverse fix SMT mounting provides mechanical stability
Gold-plated phosphor bronze contacts ensure low resistance
Polyamide housing offers thermal resistance up to 150 C

Applications

Power to board connections
High-reliability PCB interconnects
Industrial control systems
Automotive electronics

Procurement Notes

Verify the specific suffix M1P against official datasheets to confirm reverse fix orientation and tape packaging details. Ensure compatibility with mating female sockets from the same Gecko-SL family. Check RoHS compliance status via manufacturer documentation before integration.

Selection Notes

Select this component for applications requiring robust surface mount headers with high current capacity. The 1.25 mm pitch allows for dense board layouts. Verify that the 2A rating meets circuit requirements and that the operating temperature range aligns with environmental conditions.

Part Context

Part of the Harwin Gecko-SL family, known for secure locking mechanisms. This male header pairs with corresponding female sockets. The series emphasizes durability and ease of assembly through specialized SMT features, distinguishing it from standard through-hole alternatives.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Direct replacement requires matching pitch, position count, and mounting style.
