G125-MS12605M3R

Overview

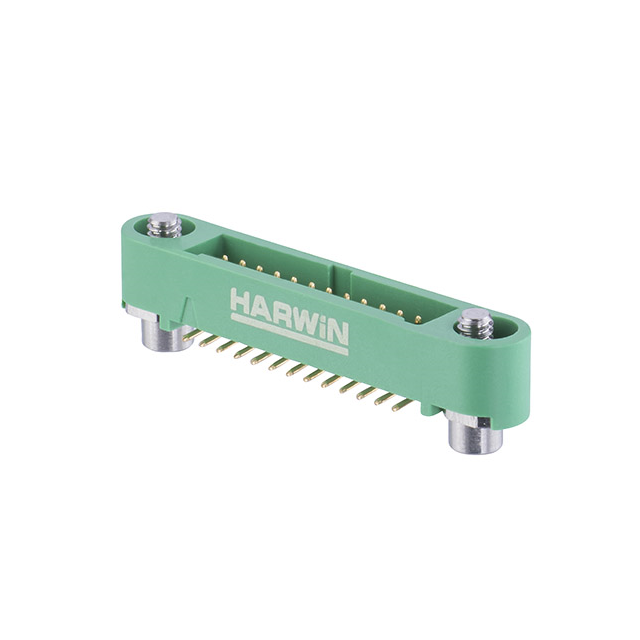

The G125-MS12605M3R is a Power to the Board header from Harwin's Gecko-Latch series. It features a male contact configuration with a 1.25 mm pitch and a 2x13 position layout (26 total positions). Designed for surface mount technology, it utilizes reverse fixings for secure attachment. The connector supports a current rating of 2 A per contact and voltage ratings of 250 V or 450 V. It operates within a temperature range of -65 °C to +150 °C.

Feature Summary

• Gecko-Latch mechanism provides high mating cycle durability
• Reverse fixing design ensures robust surface mount stability
• Gold-plated phosphor bronze contacts ensure reliable conductivity

Applications

• High-density power distribution in compact electronics
• Industrial control board interconnections
• Automotive electronic module connections

Procurement Notes

Verify component authenticity through authorized channels. Confirm RoHS compliance status via official documentation. Ensure storage conditions maintain integrity before assembly. Check for obsolescence notices as availability may be limited.

Selection Notes

Select this part for applications requiring high reliability and compact form factors. The 1.25 mm pitch allows for dense circuit layouts. Verify that the reverse fixing method aligns with PCB manufacturing capabilities and mechanical constraints.

Part Context

Part of the Harwin Gecko family, designed for demanding environments. Offers superior performance compared to standard connectors with enhanced mechanical locking features suitable for vibration-prone applications.

Replacement Considerations

No public confirmed substitute part numbers are available.
